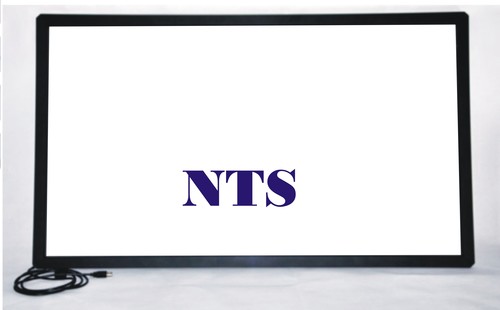

70 Inch IR Touch Screen MultiTouch Overlay

Get a Price/Quote

Product Details:

Usage Advertisement, KIOSK, Railway, Schools
Product Type MultiTouch Touch Screen
Application Industrial
Size 70 Inch
Function IR Touch Overlay
Color TPT
Warranty 1 Year
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

70 Inch IR Touch Screen MultiTouch Overlay Price And Quantity

Minimum Order Quantity 5 Piece

70 Inch IR Touch Screen MultiTouch Overlay Product Specifications

Size 70 Inch
Product Type MultiTouch Touch Screen
Color TPT
Warranty 1 Year
Application Industrial
Function IR Touch Overlay
Usage Advertisement, KIOSK, Railway, Schools

70 Inch IR Touch Screen MultiTouch Overlay Trade Information

FOB Port Delhi
Supply Ability 100 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Western Europe, Australia, North America, Eastern Europe, Middle East, Central America, South America, Asia, Africa
Main Domestic Market All India

Product Description

MECHANICAL

P/N CIT series
Overlay Thickness 10.2mm
Overlay Frame Width 18.5 mm
Housing Aluminum frame

TOUCH CHARACTERISTICS

Input Method Finger or touch pen
Touch Points NA2= 2 Touch Points, NA4= 4 Touch Points, NA6=6 Touch Points, NA10=10 Touch Points
Touch Activation Force Non Minimum activation force
Position Accuracy 1mm
Resolution 4096(W) x4096(D)
Response Time Touch: 6ms
Drawing : 6ms
Cursor Speed 120 dot/sec
Glass 4mm glass Transparency : 92%
Object Touch Size 5mm
Touch Intensity Over 60 millions single touch

ELECTRICAL

Operating Voltage DC 4.5V ~ DC 5.5V
Power 1.0W (100mA at DC 5V)
Anti -Static Discharge
ENVIRONMENT
Temperature operating -10°C ~ 60 °C
storage -30°C ~ 70 °C
Humidity operating 20% ~85%
storage 0%~95%
Relative Humidity 40°C 90% RH
Anti glare Test Incandescent lamp (220V,100W) ,
operating distance over 350mm
Altitude 3,000m
Interface USB2.0 full speed
Seal Ability IP64 Anti-Spill (Customizable to IP65 Waterproof)
Working Environment Directly Under sunlight ,indoor and outdoor
Application of Display Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks

Software Firmware :

Operate system : Windows 7,Windows 8,Windows 10, Android, Linux

Enhance Any Display Effortlessly

Instantly upgrade your standard 70-inch screens to interactive touch displays with this IR overlay. Designed for rapid installation, it's ideal for settings like schools, industrial sites, and public information kiosks, providing an intuitive user experience with multitouch capabilities. Its sturdy build ensures reliable performance even in busy commercial or industrial environments.

Versatile Applications Across Industries

This IR touch overlay is engineered to cater to a variety of industries-from creating impactful advertising in malls to facilitating ticket bookings at railway stations. Educational institutions also benefit from its easy-to-clean surface and robust multitouch interaction, engaging multiple users simultaneously for collaborative learning.

FAQ's of 70 Inch IR Touch Screen MultiTouch Overlay:

Q: How do I install the 70 Inch IR Touch Screen MultiTouch Overlay on my display?

A: The IR touch overlay is designed for simple installation. Just align it over your existing 70-inch screen and secure it using the provided mounting brackets. Once connected to the computer via USB, it automatically calibrates, requiring no specialized tools or expertise.

Q: What are the main benefits of using the IR touch overlay for kiosks and industrial applications?

A: This overlay provides precise, multi-user interaction, making it perfect for kiosks and industrial setups. Its durability and TPT color quality offer reliable performance and high visibility, while the IR technology ensures fast and accurate touch response even in demanding environments.

Q: When does the warranty period for this product begin, and what does it cover?

A: The one-year warranty begins from the date of purchase. It covers any manufacturing defects or malfunctions under normal usage conditions. For detailed warranty terms or to initiate a claim, contact your supplier or distributor.

Q: Where can I purchase the 70 Inch IR Touch Screen MultiTouch Overlay in India?

A: This product is widely available through dealers, distributors, exporters, importers, manufacturers, retailers, service providers, suppliers, and wholesalers across India. Contact your local electronics supplier or an authorized dealer for availability and pricing.

Q: What is the process for replacing or servicing the overlay if issues arise during usage?

A: If you experience issues, start by contacting the supplier or manufacturer from whom you purchased the overlay. They will help diagnose the problem and guide you through replacement or servicing procedures as required under the warranty terms.

Q: How can this overlay be used effectively in schools or railway stations?

A: In schools, the overlay enables interactive learning, allowing multiple students to collaborate on lessons and activities. In railway stations, it transforms information displays into touch-enabled kiosks for ticketing and passenger inquiries, streamlining navigation and service access.
