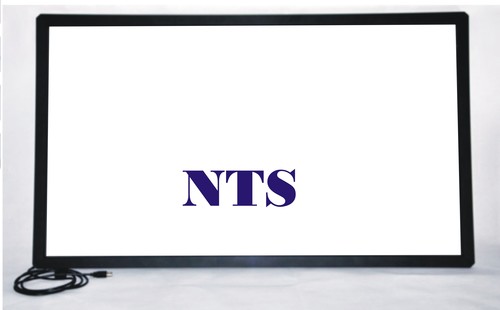

80 Inch IR Touch Screen MultiTouch Overlay

Get a Price/Quote

Product Details:

Usage Advertisement, Kiosk, School, Railway
Product Type MultiTouch Overlay
Application Industrial
Size 80 Inch
Function IR Touch Overlay
Color TPT
Warranty 12 Months
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

80 Inch IR Touch Screen MultiTouch Overlay Price And Quantity

Minimum Order Quantity 2 Piece

80 Inch IR Touch Screen MultiTouch Overlay Product Specifications

Product Type MultiTouch Overlay
Function IR Touch Overlay
Size 80 Inch
Usage Advertisement, Kiosk, School, Railway
Warranty 12 Months
Color TPT
Application Industrial

80 Inch IR Touch Screen MultiTouch Overlay Trade Information

FOB Port Delhi
Payment Terms Telegraphic Transfer (T/T), Western Union, Paypal, Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 100 Piece Per Week
Delivery Time 1 Week
Main Domestic Market All India

Product Description

MECHANICAL

P/N CIT series
Overlay Thickness 10.2mm
Overlay Frame Width 18.5 mm
Housing Aluminum frame

TOUCH CHARACTERISTICS

Input Method Finger or touch pen
Touch Points NA2= 2 Touch Points, NA4= 4 Touch Points, NA6=6 Touch Points, NA10=10 Touch Points
Touch Activation Force Non Minimum activation force
Position Accuracy 1mm
Resolution 4096(W) x4096(D)
Response Time Touch: 6ms
Drawing : 6ms
Cursor Speed 120 dot/sec
Glass 4mm glass Transparency : 92%
Object Touch Size 5mm
Touch Intensity Over 60 millions single touch

ELECTRICAL

Operating Voltage DC 4.5V ~ DC 5.5V
Power 1.0W (100mA at DC 5V)
Anti -Static Discharge
ENVIRONMENT
Temperature operating -10°C ~ 60 °C
storage -30°C ~ 70 °C
Humidity operating 20% ~85%
storage 0%~95%
Relative Humidity 40°C 90% RH
Anti glare Test Incandescent lamp (220V,100W) ,
operating distance over 350mm
Altitude 3,000m
Interface USB2.0 full speed
Seal Ability IP64 Anti-Spill (Customizable to IP65 Waterproof)
Working Environment Directly Under sunlight ,indoor and outdoor
Application of Display Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks

Software Firmware :

Operate system : Windows 7,Windows 8,Windows 10, Android, Linux

Advanced IR Touch Technology

Harness the reliability of infrared touch technology, which accurately detects multiple touch points, enabling intuitive and seamless interactions on large screens. The overlay works effortlessly with fingers, gloves, or styluses, making it suitable for varied industrial and commercial applications, such as advertising and educational kiosks.

Versatile Applications Across Industries

Designed to cater to a diverse clientele, this 80-inch overlay is widely used in advertisement displays, railway information systems, schools, and commercial kiosks. Its robust construction and responsive interface make it suitable for high-traffic environments, ensuring both durability and user satisfaction.

Easy Installation and Maintenance

The plug-and-play design of the IR touch overlay simplifies installation, minimizing downtime and technical requirements. Its sturdy TPT color panel is easy to clean and maintain, providing a long-lasting solution for businesses seeking dependable touch screen technology.

FAQ's of 80 Inch IR Touch Screen MultiTouch Overlay:

Q: How is the 80 Inch IR Touch Screen MultiTouch Overlay installed on existing displays?

A: The overlay features a plug-and-play design and can be easily mounted onto any compatible 80-inch display. The process involves aligning the overlay with your existing screen, securing it with the included mounting hardware, and connecting the USB interface, making it straightforward with minimal technical expertise required.

Q: What are the key benefits of using this IR touch overlay for industrial and commercial applications?

A: This overlay enhances efficiency by transforming static screens into interactive multitouch interfaces, making it ideal for industrial monitoring, advertising displays, kiosks, and educational usage. Its durability, precise responsiveness, and zero calibration requirement offer a reliable and cost-effective upgrade.

Q: When should I consider using an IR touch overlay instead of a traditional touch screen?

A: You should consider using an IR touch overlay when you want to convert an existing large non-touch display into a multitouch interface without replacing the screen itself. It's especially beneficial for cost-sensitive projects or environments requiring frequent upgrades or replacements.

Q: Where can this product be effectively utilized?

A: The 80-inch IR touch overlay finds applications in industrial settings, advertisements, school digital boards, railway stations, interactive kiosks, and more. It is suitable for deployment by dealers, manufacturers, retailers, service providers, and suppliers throughout India.

Q: What is the warranty period, and what does it cover?

A: The product comes with a 12-month warranty, which covers manufacturing defects, material faults, and functional failures under normal usage conditions. For detailed terms and claims process, please refer to the warranty documentation provided by the manufacturer or distributor.

Q: How does the IR multitouch technology work and what is TPT color?

A: The IR multitouch technology employs a grid of infrared sensors around the screen that senses touch inputs with high accuracy. TPT refers to the protective color panel, which enhances visibility and guards the system against daily wear and tear, ensuring both clarity and longevity.

Q: What are the steps in the order and supply process for businesses in India?

A: Businesses like dealers, distributors, exporters, and retailers can place orders directly with the manufacturer or authorized supplier. The process generally includes inquiry, quotation, confirmation, production, delivery, and installation, followed by after-sales support if needed.
