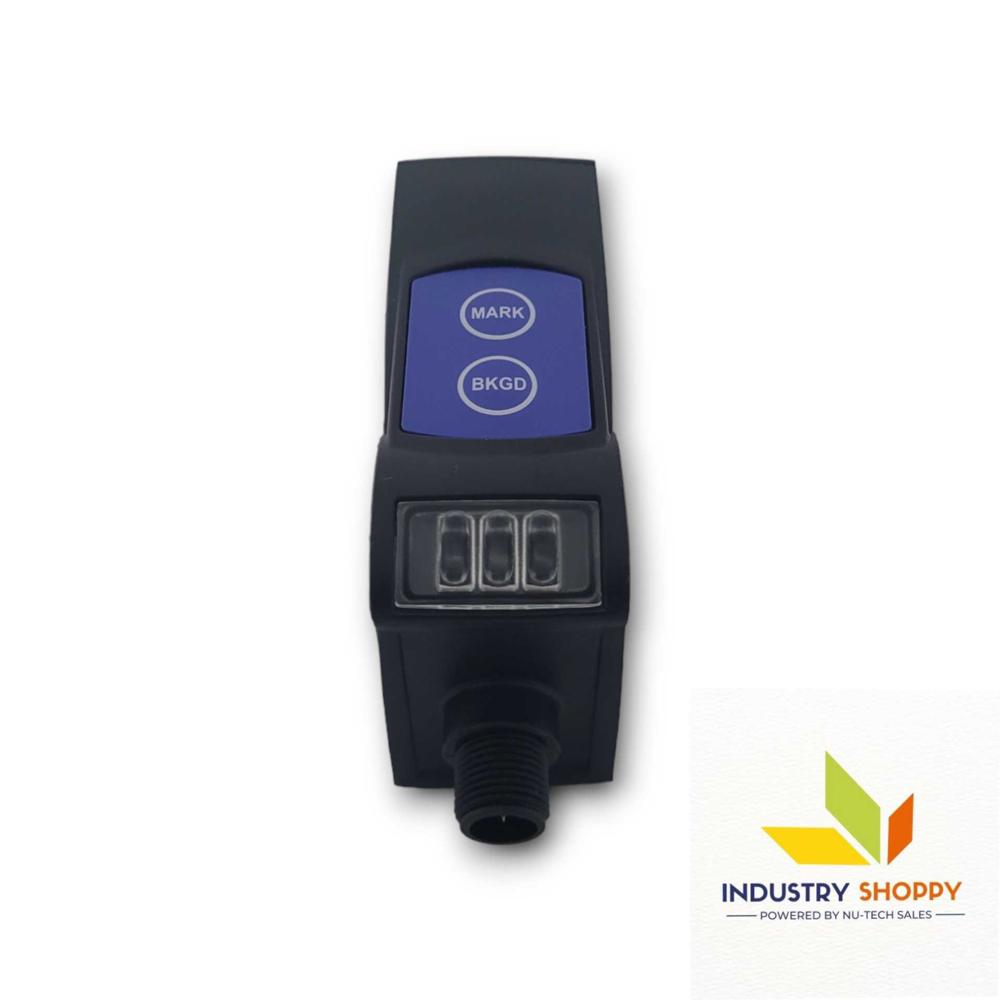

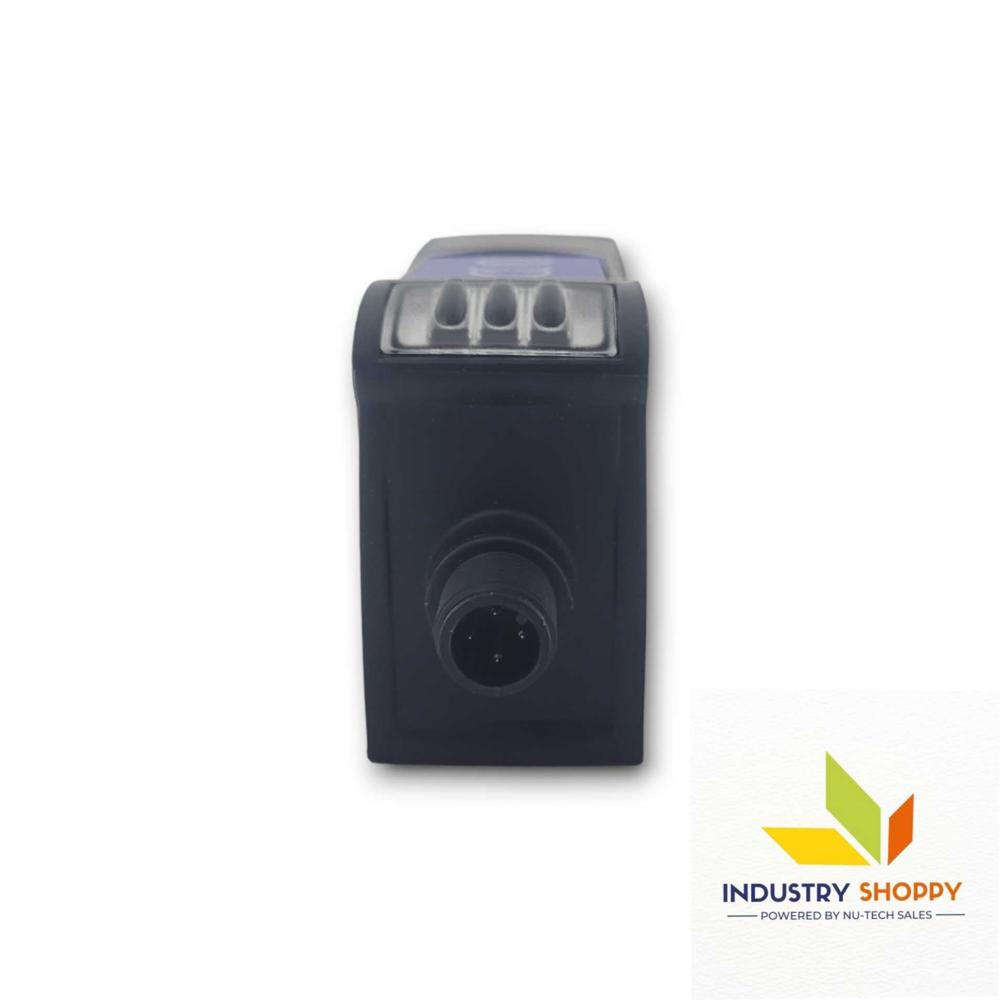

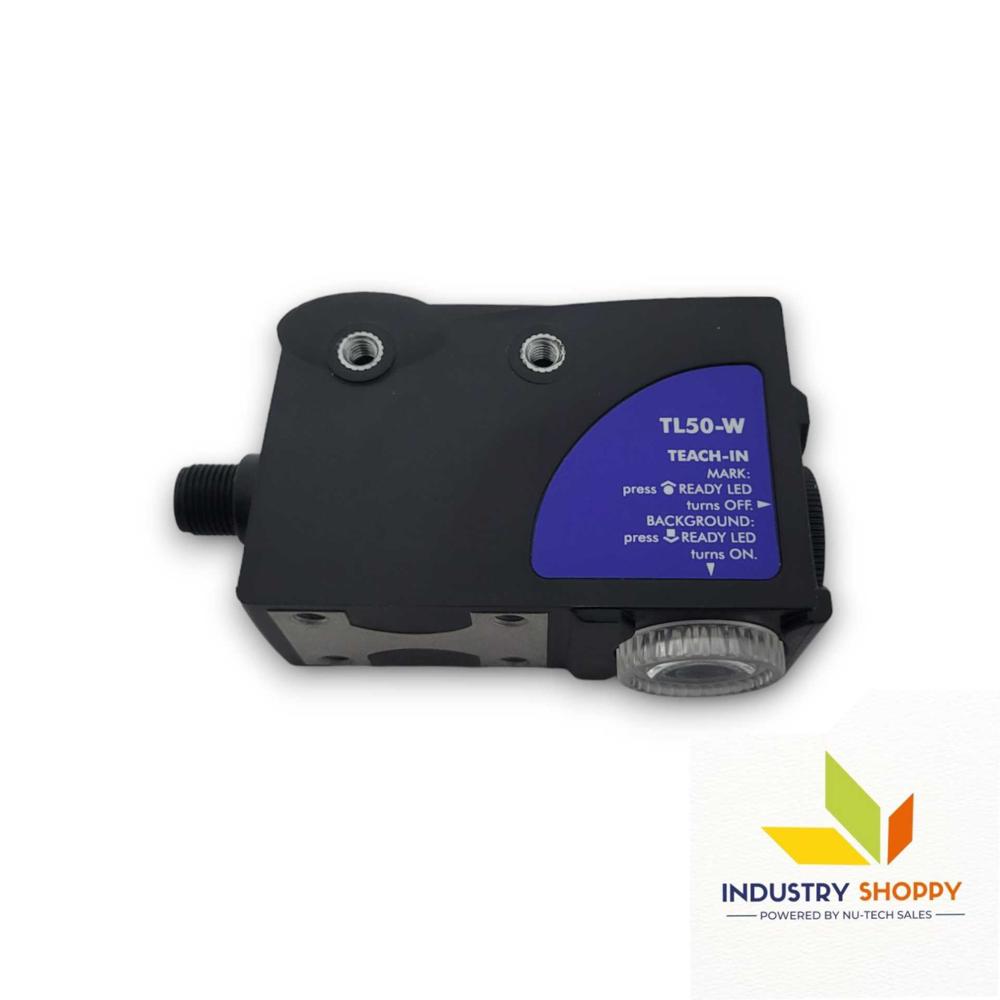

DataLogic TL50-W-815 Color Sensor

1.0 INR/Piece

Get a Price/Quote

Product Details:

Application Detection of registration marks, color marks, labels, and colored objects
Measurement Range 12 2 mm (typical) detection distance
Power Consumption 2 W
Signal Type Digital (NPN/PNP) and IO-Link
Interface IO-Link V1.1, M12 4-pin connector
Response Time 33 s
Cable Length 2 m pre-wired cable or M12 connector
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DataLogic TL50-W-815 Color Sensor Price And Quantity

Minimum Order Quantity 5 Piece
Price 1.0 INR/Piece

DataLogic TL50-W-815 Color Sensor Product Specifications

Application Detection of registration marks, color marks, labels, and colored objects
Material Fiber
Input 10-30 VDC
Usage Industrial
Measurement Range 12 2 mm (typical) detection distance
Power Consumption 2 W
Resolution 12-bit
Function Color recognition and detection
Signal Type Digital (NPN/PNP) and IO-Link
Response Time 33 s
Interface IO-Link V1.1, M12 4-pin connector
Cable Length 2 m pre-wired cable or M12 connector
IP Rating IP67
Mounting Type M18 threaded barrel, side-mount options
Wireless No
Features Teach-in function, LED indicators, short-circuit protection, reverse polarity protection
Accuracy High accuracy with fine distinction of color shades
Product Type Color Mark Sensor
Voltage 10-30 V DC
Warranty 1 Yr.
Weight Approx. 90g
Sensor Type Photoelectric color mark sensor
Operating Temperature -10C to +55C
Output PNP/NPN, Push-pull, IO-Link
Sensitivity Teach-in adjustable sensitivity

Detection Spot Size Approx. 1.5 x 5 mm
Adjustment Method Single-button TEACH method
Ambient Light Immunity 10,000 lux max (incandescent)
Protection Circuitry Short-circuit and overvoltage protection
Enclosure Material ABS/Polycarbonate front window
Light Source RGB LED
Max Switching Frequency 15 kHz
Storage Temperature -20C to +70C
Indication Green and yellow LED status indicators

DataLogic TL50-W-815 Color Sensor Trade Information

Payment Terms Paypal, Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Western Union
Supply Ability 450 Piece Per Month
Delivery Time 2 Days
Sample Available Yes
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Main Export Market(s) Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Asia, Central America, Africa
Main Domestic Market All India

Product Description

We have established ourselves as the recognized name of market by providing supreme quality Data Sensor TL50 W 815 Color Sensor to our customers. It is equipped with the features like automatic colour selection, RGB LED emission, detection of the weakest contrast of colour and many more. This Data Sensor TL50 W 815 Color Sensor is simple to use and delivers commendable output results.

Main Export Market(s) : Worldwide

Payment Terms : Online

Effortless Color Detection

The TL50-W-815 is engineered for tasks demanding high color accuracy, such as detecting registration marks, color marks, or labels. Using the teach-in function, operators can quickly configure settings for diverse applications, optimizing the sensor's performance in dynamic production lines or automated processes.

Industrial-Grade Durability

Encased in robust ABS and polycarbonate with an IP67 rating, this sensor resists dust, water, and harsh environments. Overvoltage and short-circuit protection circuits safeguard both the sensor and connected systems, ensuring longevity and reliable service even under demanding industrial conditions.

Advanced Connectivity and Integration

Featuring a wide input voltage range (10-30 VDC), digital outputs (PNP/NPN), push-pull, and IO-Link interface, the TL50-W-815 integrates effortlessly into both new and existing control platforms. The pre-wired 2 m cable or M12 connector options offer adaptable installation solutions for diverse setups.

FAQ's of DataLogic TL50-W-815 Color Sensor:

Q: How does the single-button TEACH method work for configuring the sensor?

A: The single-button TEACH method allows you to easily program the sensor's detection threshold by presenting a reference color sample and pressing the TEACH button. The sensor automatically adjusts its sensitivity for accurate color discrimination, streamlining setup for various applications.

Q: What types of output signals are available on the TL50-W-815 Color Sensor?

A: This sensor supports multiple output types including PNP, NPN, push-pull, and IO-Link, enabling compatibility with different industrial controllers and automation systems.

Q: When should the TL50-W-815 Color Sensor be selected for use in a project?

A: Choose the TL50-W-815 when high-precision color detection is required, especially for distinguishing fine shades on registration marks, labels, or colored objects within challenging industrial environments.

Q: Where can the TL50-W-815 be mounted during installation?

A: The sensor offers flexible mounting options, including an M18 threaded barrel for secure placement or convenient side-mount setups. It also features either a pre-wired 2 m cable or an M12 4-pin connector for straightforward integration.

Q: What is the process for connecting this sensor to an industrial controller?

A: Connection is simple: use the pre-wired cable or M12 connector to link the sensor's outputs (digital or IO-Link) directly to your industrial controller, ensuring the appropriate power supply (10-30 VDC) and proper output configuration for your system.

Q: What are the key benefits of using the DataLogic TL50-W-815 in industrial applications?

A: The TL50-W-815 offers rapid 33 s response time, high sensitivity, excellent color distinction, and rugged IP67 construction. Its built-in protections and flexible connectivity options maximize uptime, precision, and adaptability across multiple industries.

Q: How does the sensor maintain performance in environments with strong ambient light?

A: The TL50-W-815 features ambient light immunity up to 10,000 lux (incandescent), ensuring reliable color detection even under bright lighting conditions often present on industrial floors.
