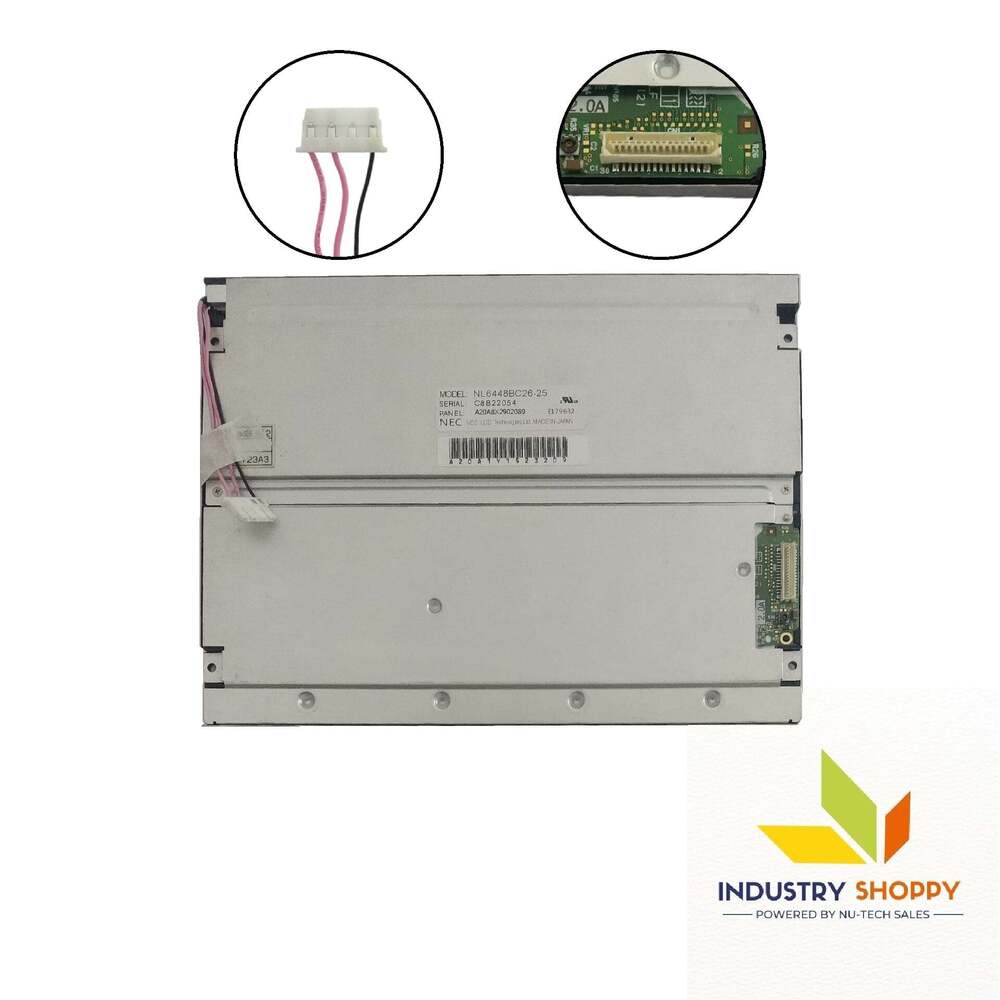

NEC NL6448BC26-25 LCD Module

उत्पाद वर्णन

The NEC NL6448BC26-25 LCD Module is a high-brightness, durable display designed for industrial, medical, and outdoor applications that require exceptional visibility and long-term reliability. With a 640—480 (VGA) resolution and 95 PPI pixel density, it delivers sharp and clear visuals across its active area of 170.88(W)—128.16(H) mm. The clear, hard-coated (3H) surface enhances durability and scratch resistance, making it suitable for demanding environments.

This panel features 600 cd/m² brightness (Typ.) and a contrast ratio of 600:1 (Typ.), ensuring vivid image quality and readability in various lighting conditions. The wide viewing angles of 80/80/80/60 (CR‰10) provide stable image performance from multiple perspectives, making it ideal for multi-user industrial applications. A fast response time of 6ms (Tr) / 19ms (Td) ensures smooth motion transitions, reducing blurring in dynamic content.

Supporting 262K colors with 60% NTSC coverage, the TN, Normally White, Transmissive operating mode ensures consistent brightness and color accuracy. The panel uses a CMOS (1-channel, 6-bit) 31-pin connector and runs at a refresh rate of 60Hz, ensuring stable data transmission and efficient performance.

Powered by a 3.3V/5.0V (Typ.) supply, this panel is both flexible and energy-efficient. The backlight system features 4 WLED strings with a 70,000-hour lifespan, providing long-lasting illumination. Additionally, an optional driver can be added for enhanced compatibility with different applications.

Weighing 330g (Typ.) to 350g (Max.), the panel is lightweight yet robust, making it easy to integrate into embedded systems. Designed for rugged environments, it operates in temperatures from -20C to 70C, with a storage range of -30C to 80C, ensuring stability under extreme conditions. It also withstands vibration levels up to 2.0G (19.6 m/s²), making it a reliable choice for industrial control systems, medical devices, and outdoor displays.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don™t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it™s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it™s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.
