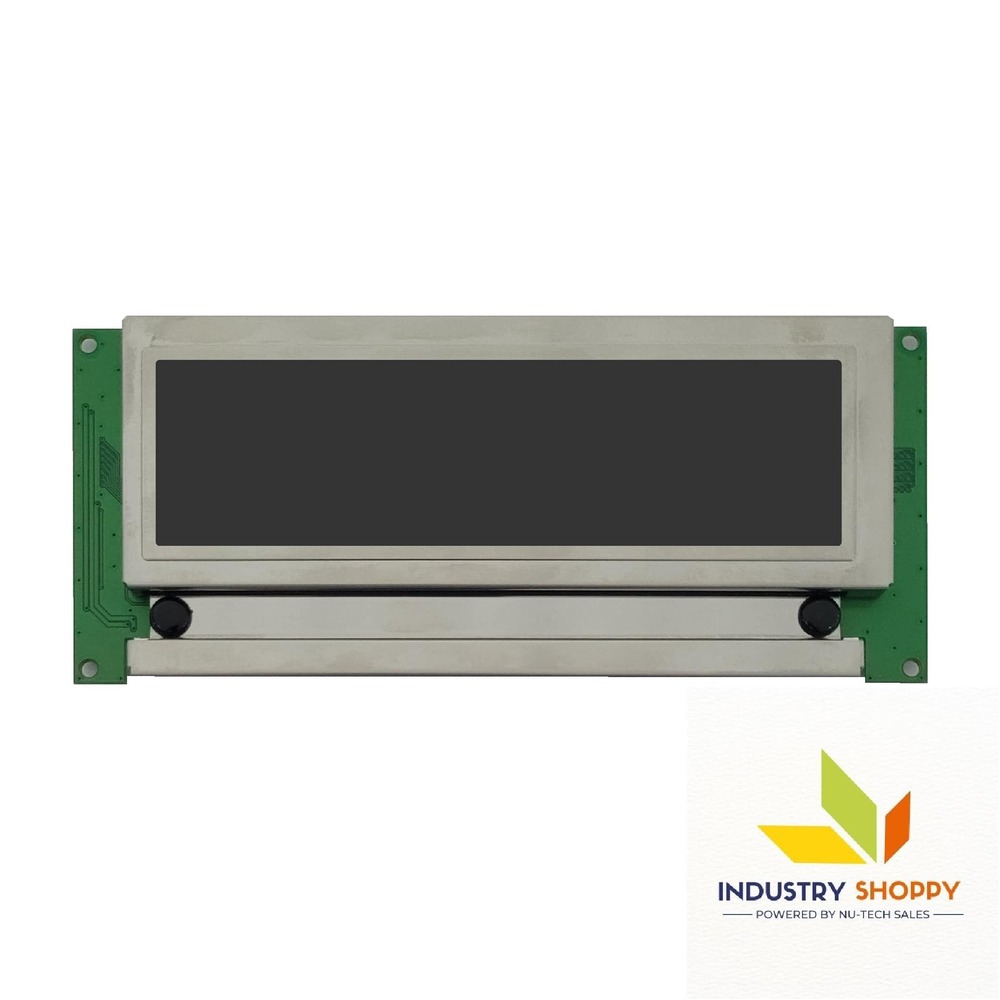

Hitachi LMG7380QHFC LCD Module

Product Description

The Hitachi LMG7380QHFC LCD Module offers a typical luminance of 90 cd/m², making it suitable for environments with moderate lighting. The contrast ratio of 20:1 ensures adequate differentiation between the black and white (positive) display elements, enhancing the clarity of the monochrome output. With a viewing angle of 40 (CR‰2), the display offers good visibility when viewed from straight-on perspectives.

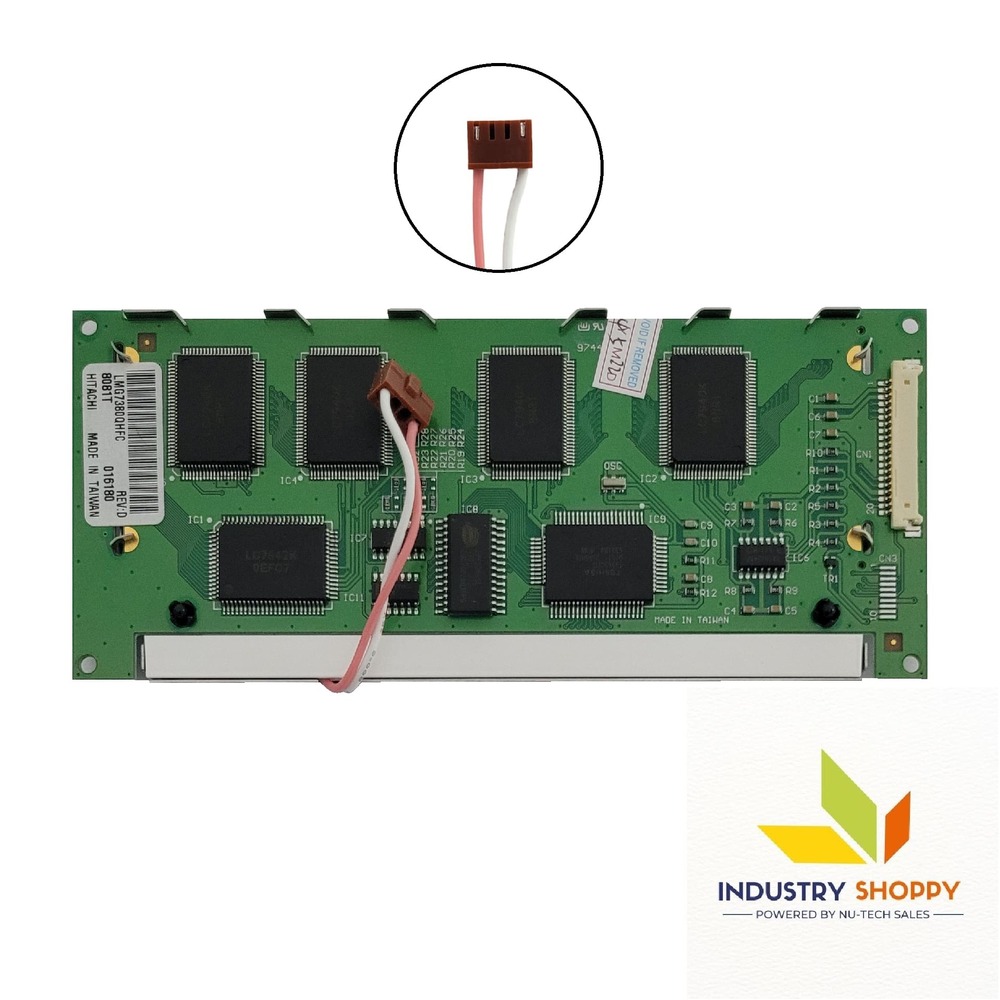

The Hitachi FSTN-LCD panel operates in STN (Super Twisted Nematic) mode, is transmissive, and displays black and white (positive) images. It features an 8-bit parallel signal interface with a 20-pin connector, ensuring compatibility with a range of systems. With a response time of 160ms (rise) and 110ms (fall), the display performs adequately for static and semi-dynamic content. It operates at a frame rate of 75Hz, ensuring smooth and stable image rendering.

Powered by a 5.0V supply, the display is backlit by a single CCFL (Cold Cathode Fluorescent Lamp) without a driver. The display is designed to operate in temperatures ranging from 0C to 50C and can be stored between -20C and 60C, making it a durable and reliable solution for various applications. Weighing 190 grams, it is both lightweight and efficient.

This module is suitable for use in demanding environments such as industrial control panels, medical devices, and monitoring equipment.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don™t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. It is important to recognize that, despite our efforts, errors may still emerge during this process. Even with our sincere efforts, it remains crucial to exercise caution. All trademarks and trade names used on our site  are the property of their respective owners.
