Product Description

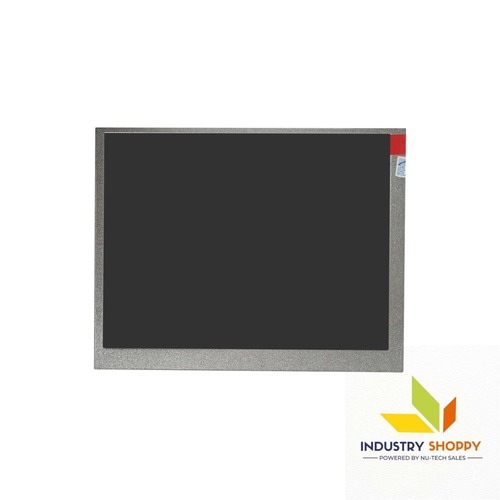

Innolux AT056TN53-V.1  is one of the most popular LCD Module which is mainly used in industrial and medical applications. It is a 5.6 inch diagonal a-Si TFT-LCM LCD display panel product from Chimei Innolux Corporation (hereafter called Chimei Innolux), with an integral WLED backlight system, With LED Driver , without touch screen. Its resolution 640(RGB)480, VGA  143 PPI and contrast ratio 500 : 1 (Typ.) (TM). It features an operating temperature range of -20 70C , a storage temperature range of -30 80C . Our engineers has entered all the specification details about this LCD screen according to the datasheet. Although errors may occur during this process.

No Technical skills required! No soldering required! It is easy to install!

All trademarks and trade names used on our site  are the property of their respective owners.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Dont scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
