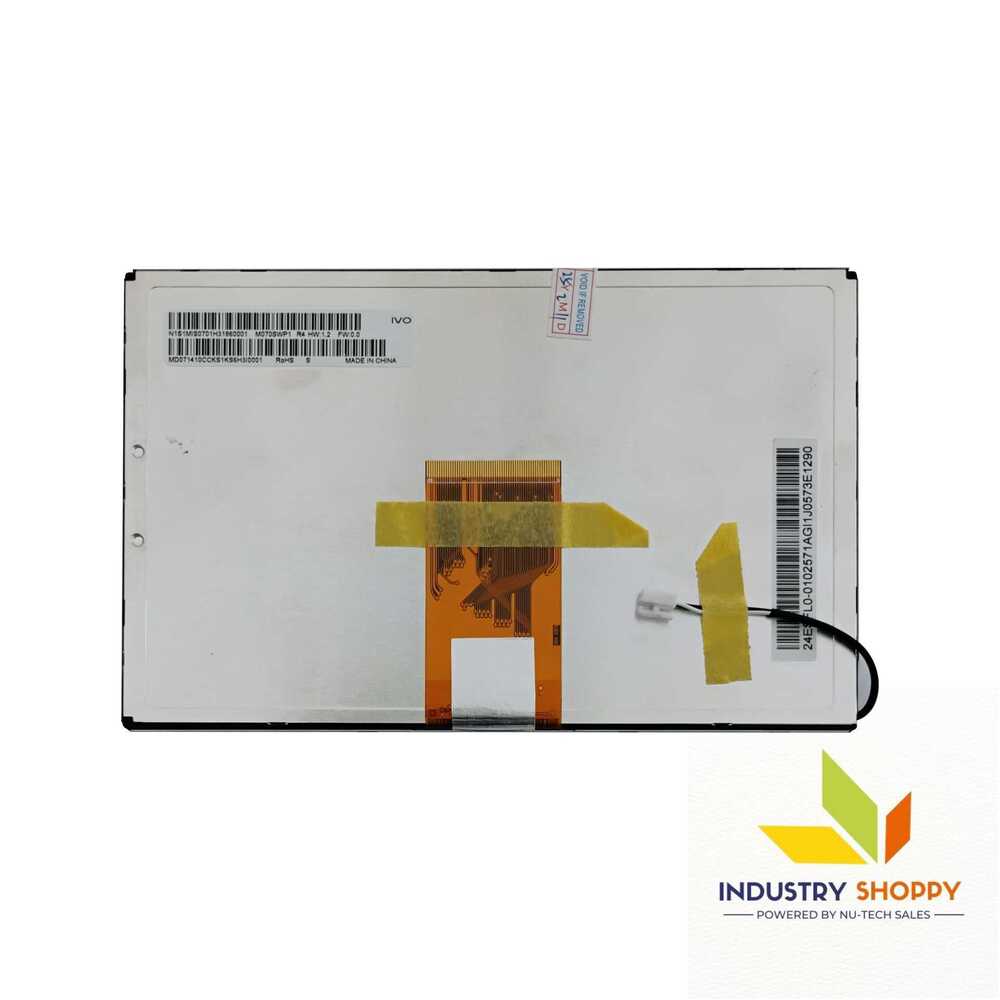

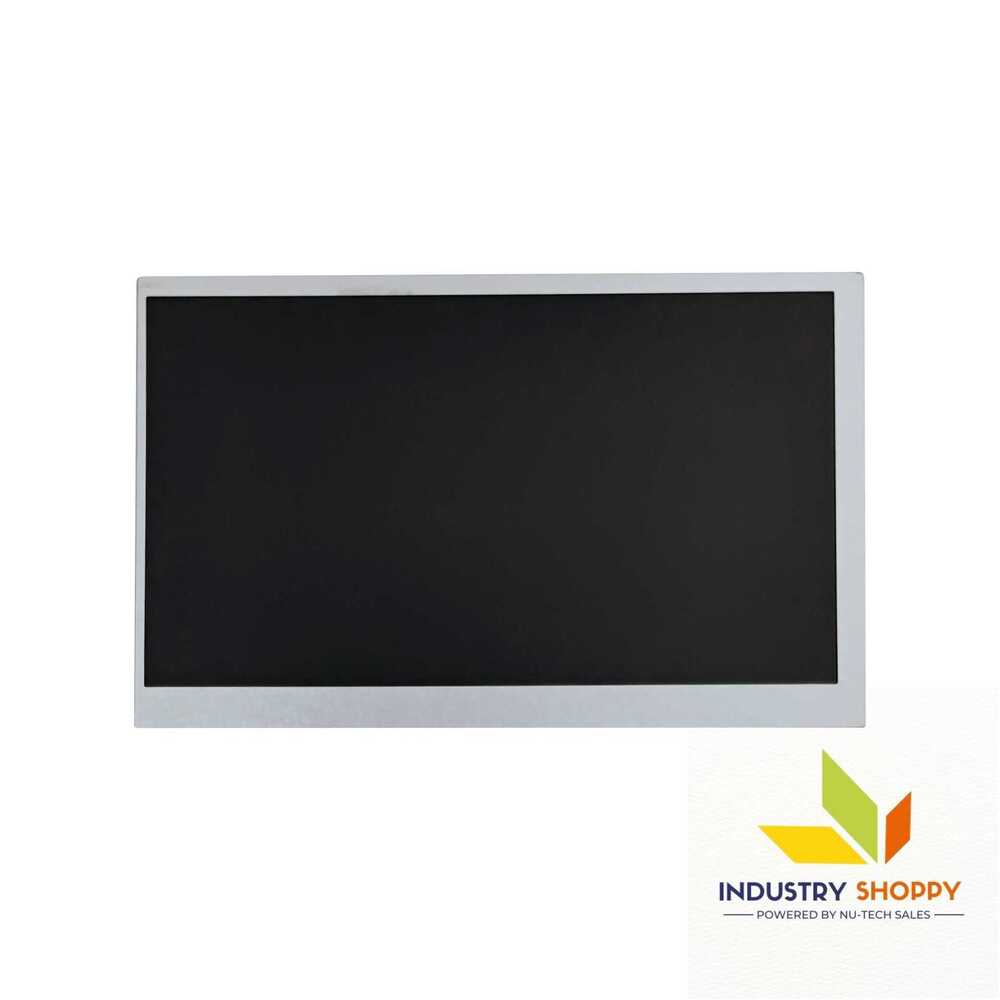

IVO M070SWP1-R4-LCD Module

Product Description

The IVO M070SWP1-R4 is a 7.0-inch a-Si TFT-LCD module designed for industrial applications requiring reliable and high-quality display performance. It offers a WVGA resolution of 800 x 480 pixels, delivering clear and detailed images. The display area measures 153.6 mm in width and 86.64 mm in height, with a pixel pitch of 0.192 mm x 0.1805 mm. Utilizing TN technology, the module operates in a normally white, transmissive mode, providing a typical brightness of 500 cd/m² and a contrast ratio of 500:1. The viewing angles are 70 degrees left and right, 50 degrees up, and 60 degrees down, ensuring good visibility from various perspectives. The module supports 16.7 million colors and has a response time of 16 ms. It operates at a frequency of 60 Hz and employs a TTL (1 channel, 8-bit) signal interface with a 60-pin FPC connector. The backlight system consists of white LEDs with an estimated lifespan of 50,000 hours, though it does not include an LED driver. The module's dimensions are 165.0 mm (W) x 104.0 mm (H) x 5.3 mm (D), and it has a mass of approximately 125.56 grams. The surface is treated with a matte finish and a hard coating rated at 3H hardness. The M070SWP1-R4 is suitable for use in environments with operating temperatures ranging from -20C to 70C and storage temperatures from -30C to 80C.

Versatile Display for Critical Applications

Purpose-built for industrial and medical use, the IVO M070SWP1-R4-LCD Module provides a reliable visual interface even in demanding settings. Its sturdy construction from ABS and aluminium ensures longevity and operational safety, making it an optimal choice for equipment that requires continuous and accurate visual support.


Professional Installation for Peak Performance

To maintain the functionality and safety of the LCD module, professional installation is highly recommended. Proper mounting and connection not only prevent damage to the display but also ensure consistent performance and extended lifespan, especially when used in specialized industrial and medical devices.
