Kyocera TCG057QVLHA-G00 LCD Module

Product Description

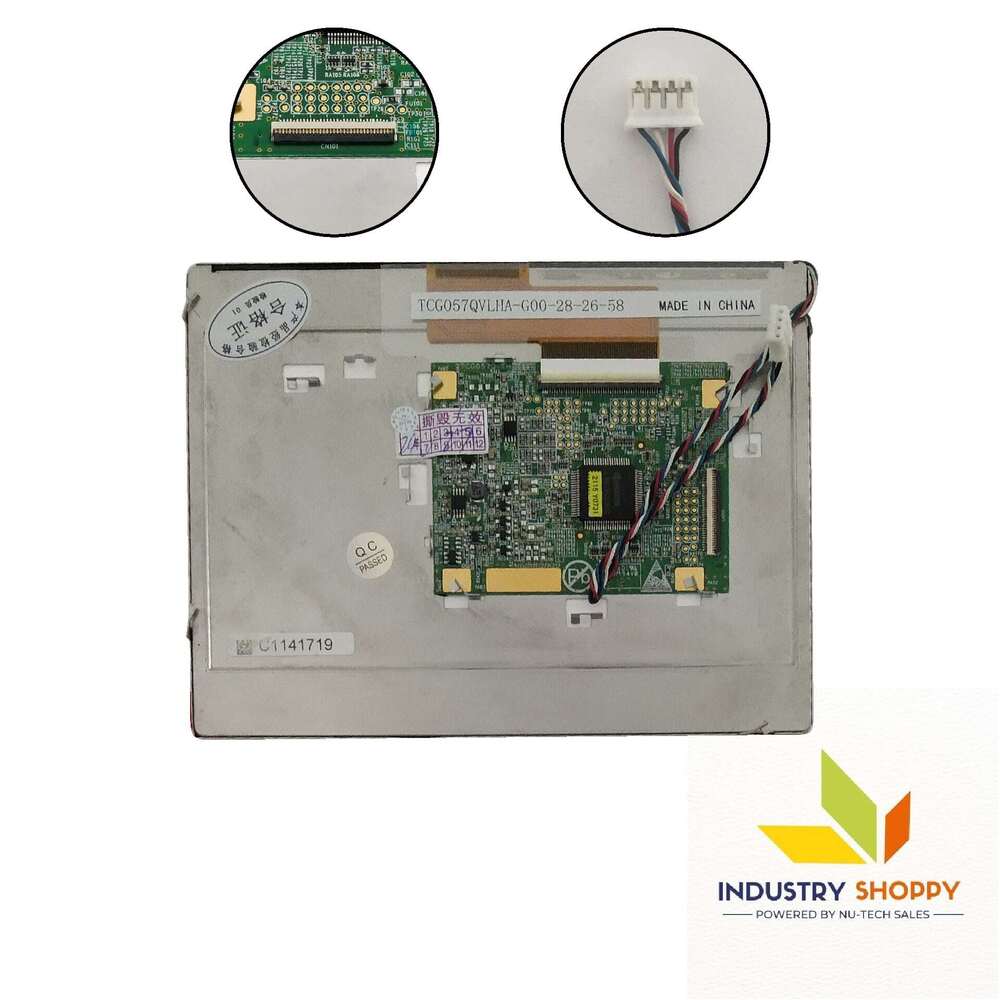

Kyocera TCG057QVLHA-G00 LCD Module

The Kyocera TCG057QVLHA-G00 LCD Module is a compact, high-contrast display designed for industrial and embedded applications. With a 320240 (QVGA) resolution and 70 PPI pixel density, it provides clear and detailed visuals across its active area of 115.2(W)86.4(H) mm. The panel's TN, Normally White, Transmissive operating mode ensures consistent brightness and reliable performance in various environments.

Featuring a contrast ratio of 500:1 (Typ.), this panel offers good image clarity with deep blacks and sharp details. The wide viewing angles of 80/80/80/80 (CR5) provide stable image performance from multiple perspectives, making it ideal for multi-user applications. With a response time of 10ms (Tr) / 25ms (Td), the panel ensures smooth motion transitions, minimizing blurring in dynamic content.

Supporting 262K colors, the panel delivers natural and vibrant visuals. It uses a Parallel RGB (1-channel, 6-bit) 33-pin connector, operating at a refresh rate of 60Hz, ensuring stable data transmission and efficient performance.

Powered by a 3.3V supply, this panel is energy-efficient. The WLED backlight system provides consistent illumination, though an external driver is required. Designed for rugged environments, the panel operates in temperatures from -30C to 80C, with a storage range of -20C to 70C, ensuring stability under extreme conditions.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Dont scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.

---

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, its imperative to recognize that errors may arise during this process. Despite our sincere efforts, its important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products, including sensors, HMIs, PLCs, and more, we cater to diverse industries by offering top-quality solutions. Moreover, our user-friendly platform ensures a seamless shopping experience, making it easier for customers to find exactly what they need. In addition, we prioritize efficiency and convenience, allowing businesses to streamline their procurement process. Furthermore, our commitment to reliability and customer satisfaction sets us apart from competitors, ensuring that every purchase meets the highest standards. As a result, we continue to be a trusted partner for industries seeking innovative and dependable solutions. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

---

Facebook, Youtube

Durable Construction for Industrial Demands

Built with high-quality ABS and aluminium, the Kyocera TCG057QVLHA-G00 LCD Module provides exceptional durability and resilience. This makes it suitable for continuous operation in industrial settings where equipment reliability is paramount. Its 5.7-inch screen size is optimized for easy integration and clear data visualization.


Universal Application Versatility

Ideal for use in various industrial applications, this module's standardized dimensions (30 24 10 cm) allow seamless installation into control units, factory machinery, and monitoring systems. Its adaptable build supports integration by manufacturers, suppliers, and service providers serving different sectors.
