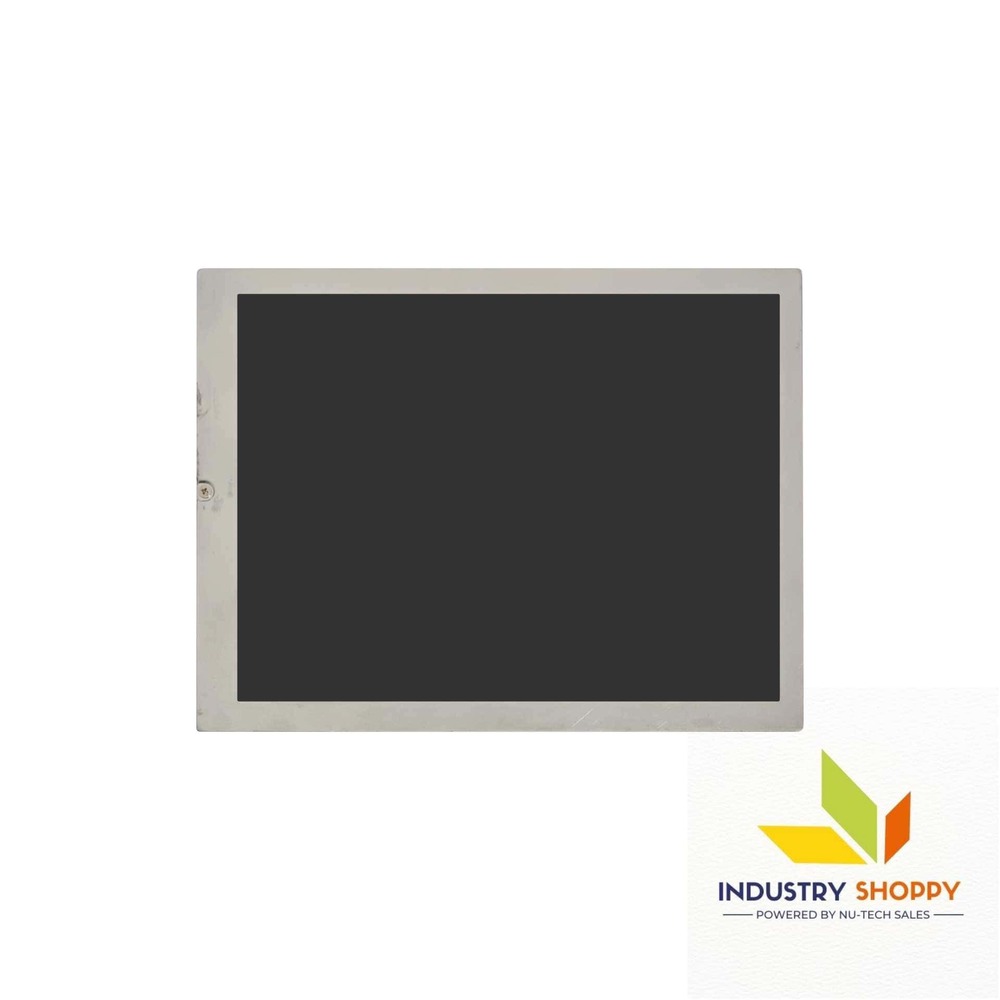

NEC NL6448BC20-30 LCD Module

Product Description

The NEC NL6448BC20-30 LCD Module is a high-brightness, durable display designed for industrial, outdoor, and demanding applications requiring exceptional visibility and rugged performance. With a 640480 (VGA) resolution and 122 PPI pixel density, it delivers sharp and detailed visuals across its active area of 132.48(W)99.36(H) mm. The clear, hard-coated (2H) surface with antireflection treatment enhances durability and minimizes glare, making it ideal for bright and outdoor environments.

This panel offers an impressive brightness of 1000 cd/m (Typ.) and a contrast ratio of 800:1 (Typ.), ensuring superior image clarity and readability even under direct sunlight. The wide viewing angles of 80/80/80/80 (CR10) provide consistent image quality from different perspectives, making it suitable for various industrial applications. With a fast response time of 3ms (Tr) / 15ms (Td), it delivers smooth motion rendering for dynamic content.

Supporting 262K and 16.7M colors with 40% NTSC coverage, the TN, Normally White, Transmissive operating mode ensures consistent color reproduction and brightness. The panel utilizes an LVDS (1-channel, 6/8-bit) 20-pin connector, operating at a refresh rate of 60Hz, ensuring stable and efficient signal transmission.

Powered by a 3.3V supply, this panel is energy-efficient while maintaining high performance. The backlight system features 4 WLED strings with an impressive 70,000-hour lifespan, offering long-term reliability. Weighing 155g (Typ.) to 165g (Max.), it is lightweight yet robust, making it easy to integrate into compact devices.

Designed for harsh environments, the panel operates in temperatures from -30C to 80C, with a storage range of -30C to 80C, ensuring stability in extreme conditions. It also withstands vibration levels up to 2.0G (19.6 m/s), making it an ideal choice for rugged industrial applications.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Dont scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.

---

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, its imperative to recognize that errors may arise during this process. Despite our sincere efforts, its important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

Reliable Display Solution for Industrial Needs

Engineered for industrial usage, the NEC NL6448BC20-30 LCD Module delivers consistent visual performance in mission-critical scenarios. Its robust design and professional-grade construction make it suited for harsh operational environments. Sourcing and after-sales support are conveniently available through trusted distribution channels on Christmas Island.


Professional Installation Ensures Optimal Performance

To safeguard the internal components and guarantee maximum reliability, professional installation of the LCD module is crucial. This helps prevent potential damage during setup and optimizes the overall lifespan and functionality of the display. Seek authorized experts for installation and ongoing maintenance to ensure seamless operation.
