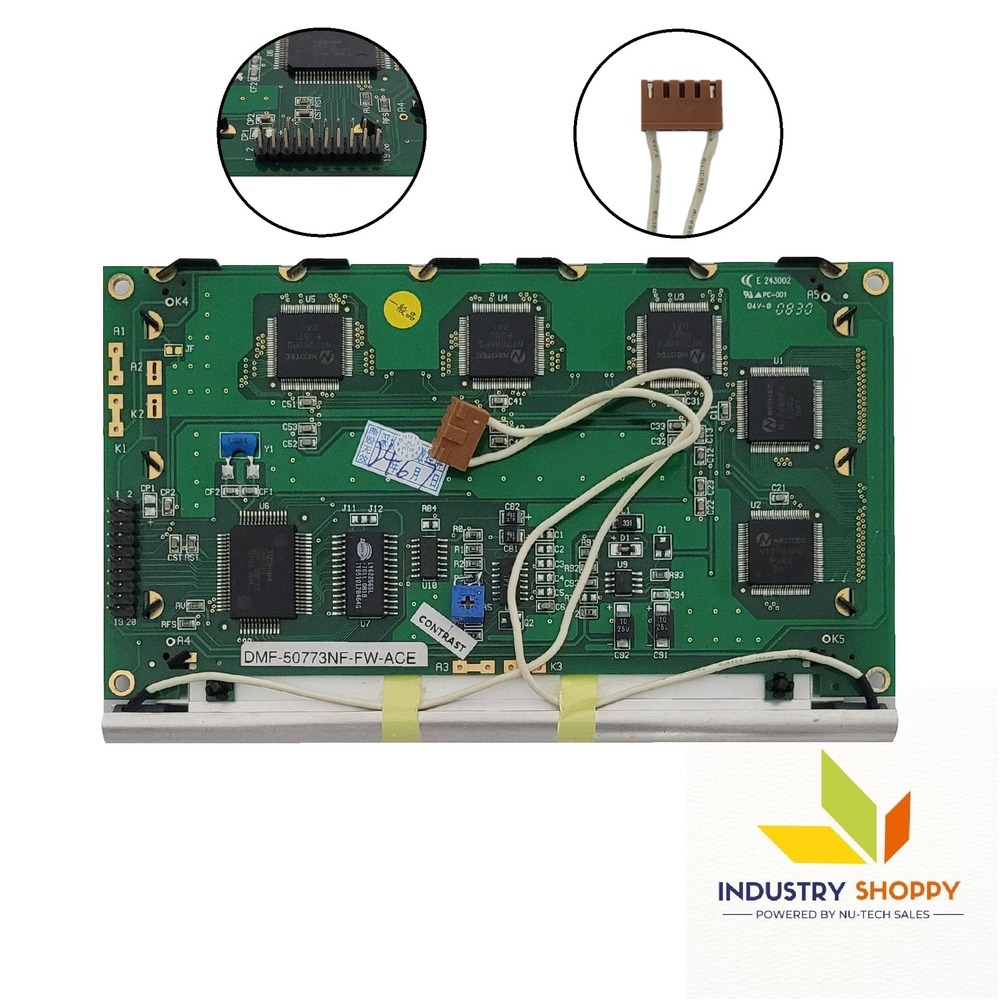

NTS DMF50773NF-FW LCD Module

Product Description

Compatible DMF50773NF-FW LCD Module

The module features FSTN (Film Compensated Super Twisted Nematic) technology, delivering better contrast and a sharper image compared to traditional STN displays. Operating in STN Black/White mode, the display is transflective, allowing it to function well in both high and low lighting conditions. Its luminance of 40 cd/m and contrast ratio of 6:1 (Typ.) ensures clear visibility even in challenging environments.

With a 200/300 ms response time and a frame rate of 70Hz, the display offers smooth image transitions, suitable for real-time monitoring applications. The 8-bit parallel signal interface with a 22-pin connector simplifies integration into various systems.

This LCD module operates on a 5V power supply and includes a YG-LED backlight, ensuring reliable illumination without the need for an external driver. Designed to endure demanding conditions, it operates within a temperature range of 0 to 50C and can be stored safely in environments as cold as -20C and as warm as 60C. Weighing 250g, this module is robust yet compact, making it an excellent choice for various professional applications.

This module is suitable for use in demanding environments such as industrial control panels, medical devices, and monitoring equipment.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Dont scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, its imperative to recognize that errors may arise during this process. Despite our sincere efforts, its important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

Versatile Industrial Application

The NTS DMF50773NF-FW LCD Module is designed to excel in industrial, medical, and commercial environments. Its durable ABS and aluminum build ensures resilience against rigorous settings, making it a reliable choice for engineers and system integrators. Coupled with a 5.7-inch display, this module meets the operational needs of professionals seeking consistent visual performance.


Professional Installation Guidelines

To preserve the integrity and lifespan of the NTS DMF50773NF-FW LCD Module, it is strongly recommended to engage a qualified technician for installation. Mishandling or improper setup may lead to irreparable damage. Adhering to professional guidelines not only maximizes device performance but also safeguards your investment.
