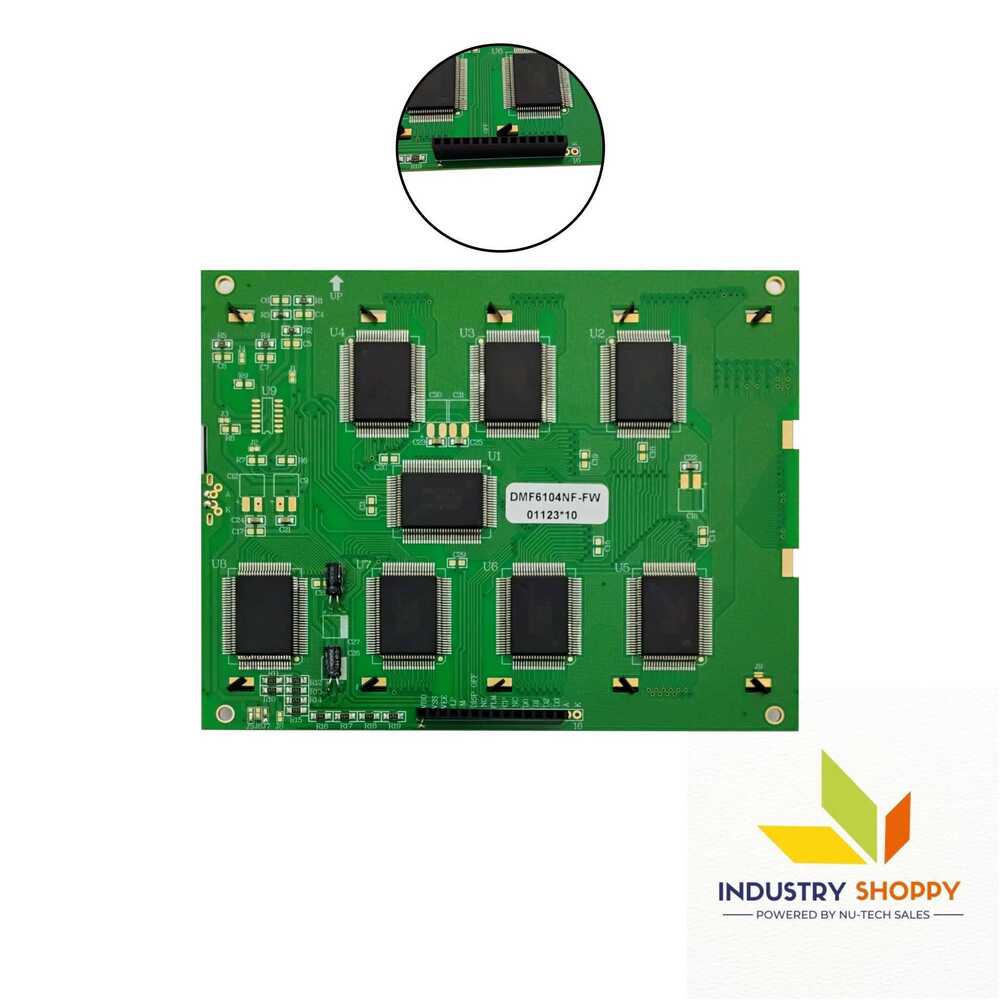

NTS DMF6104NF-FW LCD Module

Product Description

NTS DMF6104NF-FW LCD Module

The active area measures 120.32(W)60.16(H) mm, enclosed within an outline dimension of 167(W)116(H)24.5(D) mm. This compact design ensures easy integration into systems with space constraints. The module operates in a transmissive mode with a negative black-and-white display, offering a luminance of 50 cd/m and a contrast ratio of 15:1, making it suitable for low-light environments.

The FSTN-LCD panel type ensures high reliability, while the signal interface utilizes a 16-pin parallel data connection (1 channel, 4-bit) for seamless communication with control systems. Operating at a frame rate of 70 Hz and powered by a 5.0V supply, this module delivers smooth and consistent performance.

The backlight comprises a single CCFL with a lifespan of 20,000 hours, ensuring long-term usability. The module weighs a maximum of 250g and is designed to operate within a temperature range of -10C to 40C, with storage conditions of -20C to 60C.

This durable and versatile display is an excellent choice for industrial equipment and other applications requiring a reliable monochrome LCD.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Dont scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.

---

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, its imperative to recognize that errors may arise during this process. Despite our sincere efforts, its important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Versatile Applications Across Industries

The NTS DMF6104NF-FW LCD Module is designed to meet the diverse requirements of industrial, medical, and commercial sectors. Its durability and consistent performance make it suitable for critical display tasks, ensuring clarity and reliability in demanding environments. It offers flexibility for users across multiple industries who require robust and dependable visual interfaces.


High-Quality Construction for Longevity

Engineered using premium ABS and aluminium materials, this LCD module offers excellent resistance to wear and environmental stress. Its sturdy construction ensures a long service life, making it a cost-effective solution for businesses seeking durable display technology that performs reliably over time.
