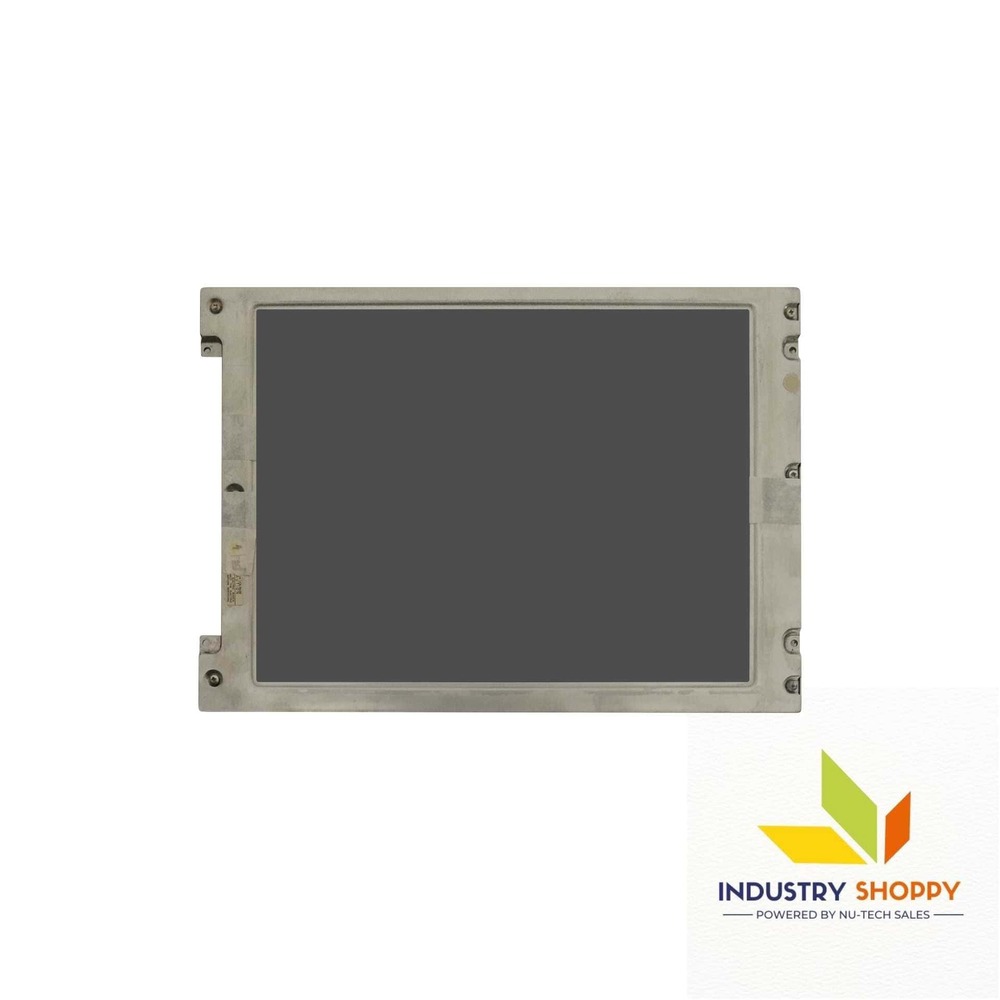

Toshiba LTM10C210 LCD Module

Product Description

The Toshiba LTM10C210 LCD Module is a compact and reliable display solution, designed for industrial and embedded applications. With a 640480 (VGA) resolution and 76 PPI pixel density, it delivers clear and detailed visuals for a wide range of display needs. The active area of 211.2(W)158.4(H) mm ensures efficient use of screen space. The panel operates in TN (Twisted Nematic), Normally White, Transmissive mode, offering good brightness and visibility in standard conditions.

With a luminance of 400 cd/m (Typ.) and a contrast ratio of 250:1 (Typ.), the panel provides adequate image clarity for general industrial applications. The viewing angles of 60/60/50/50 (CR10) provide functional visibility for direct viewing, making it suitable for applications that dont require extreme wide viewing. Additionally, it has a response time of 50ms (Tr) / 50ms (Td), offering moderate motion clarity for standard display tasks.

Supporting 262K colors, the panel uses an RGB vertical stripe operating mode, ensuring consistent color reproduction. The display utilizes a Parallel RGB (1-channel, 6-bit) 31-pin connector, which is common for industrial and embedded systems, providing stable data transmission.

The backlight system features 2 CCFL lamps, with a 50,000-hour lifespan, providing consistent brightness over time but requiring an external driver for operation. Powered by a 5.0V supply, the panel is energy-efficient, making it suitable for long-term use in embedded systems. With a weight of 650g (Typ.), it is robust yet manageable for integration into various devices.

Designed for harsh environments, the panel operates in temperatures ranging from -20C to 60C, with a storage range of 0C to 50C, making it a reliable solution for industrial control panels, medical equipment, and other embedded applications.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Dont scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.

---

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, its imperative to recognize that errors may arise during this process. Despite our sincere efforts, its important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products, including sensors, HMIs, PLCs, and more, we cater to diverse industries by offering top-quality solutions. Moreover, our user-friendly platform ensures a seamless shopping experience, making it easier for customers to find exactly what they need. In addition, we prioritize efficiency and convenience, allowing businesses to streamline their procurement process. Furthermore, our commitment to reliability and customer satisfaction sets us apart from competitors, ensuring that every purchase meets the highest standards. As a result, we continue to be a trusted partner for industries seeking innovative and dependable solutions. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Versatile Display Solution for Industrial and Medical Use

The Toshiba LTM10C210 LCD module stands out with its 10.4-inch screen, offering clear visuals essential for industrial and medical instrumentation. Its rugged build, featuring ABS and aluminium, ensures long-lasting reliability even in demanding conditions. This module is sourced by a wide network of electronics professionals, including exporters and suppliers in China.


Professional Installation Maximizes Performance

To safeguard the Toshiba LTM10C210 and ensure optimal operation, professional installation is highly recommended. Expert installation not only minimizes the risk of physical damage but also guarantees compatibility and longevity in your specific application environment.
