Weidmuller PRO ECO3 120W 24V 5A SMPS Power Supply

Product Description

Weidmuller PRO ECO3 120W 24V 5A SMPS Power Supply

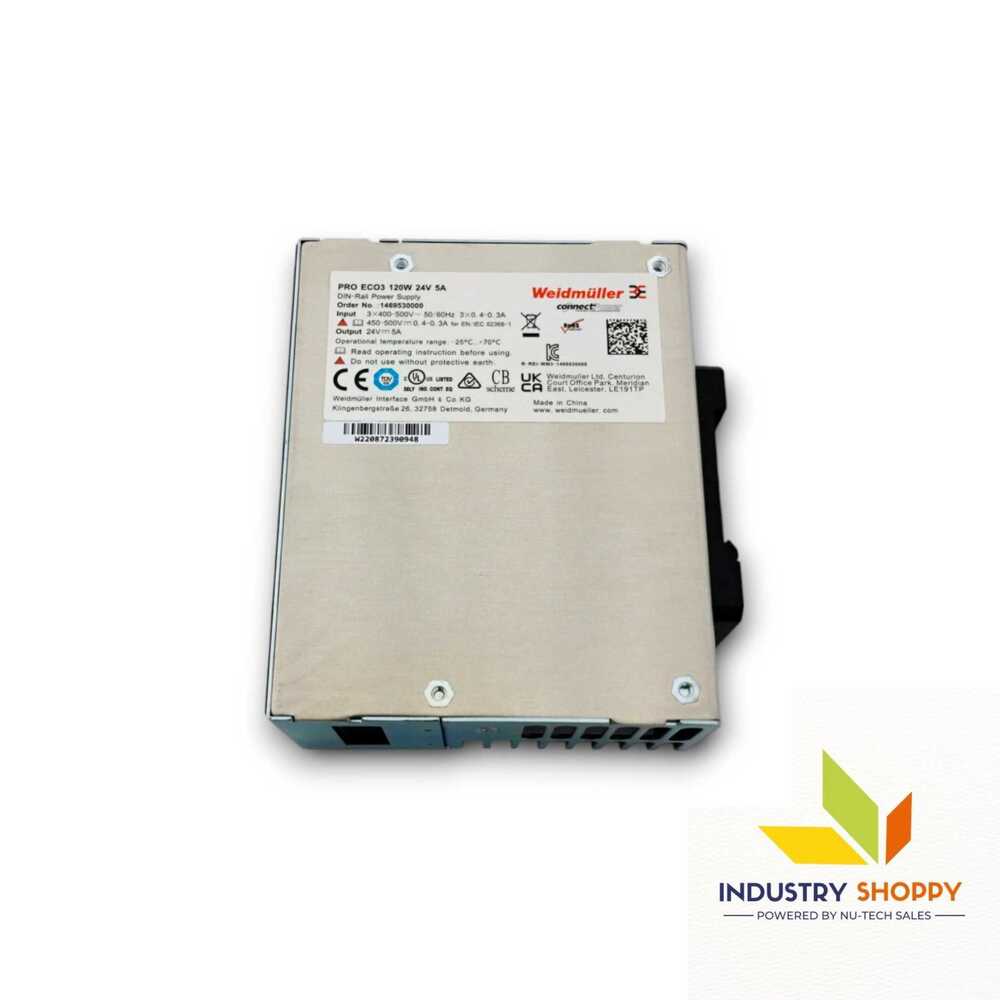

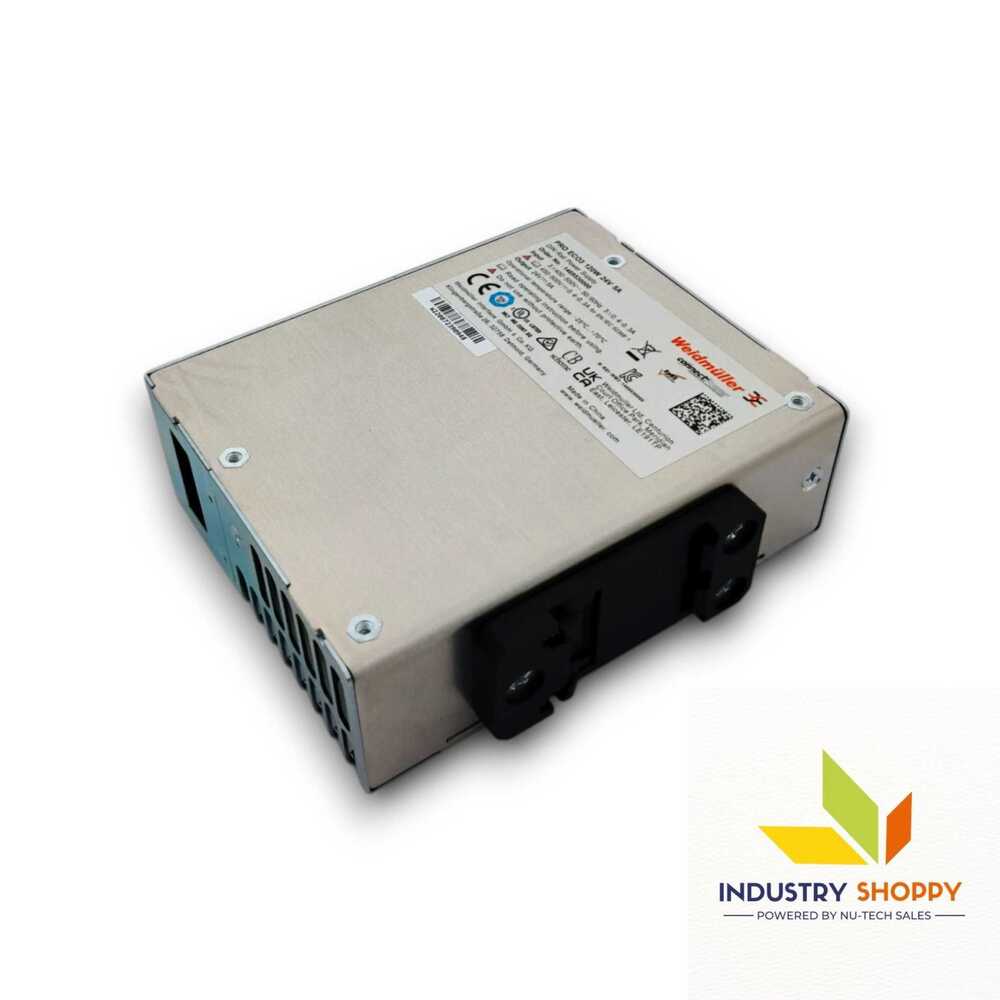

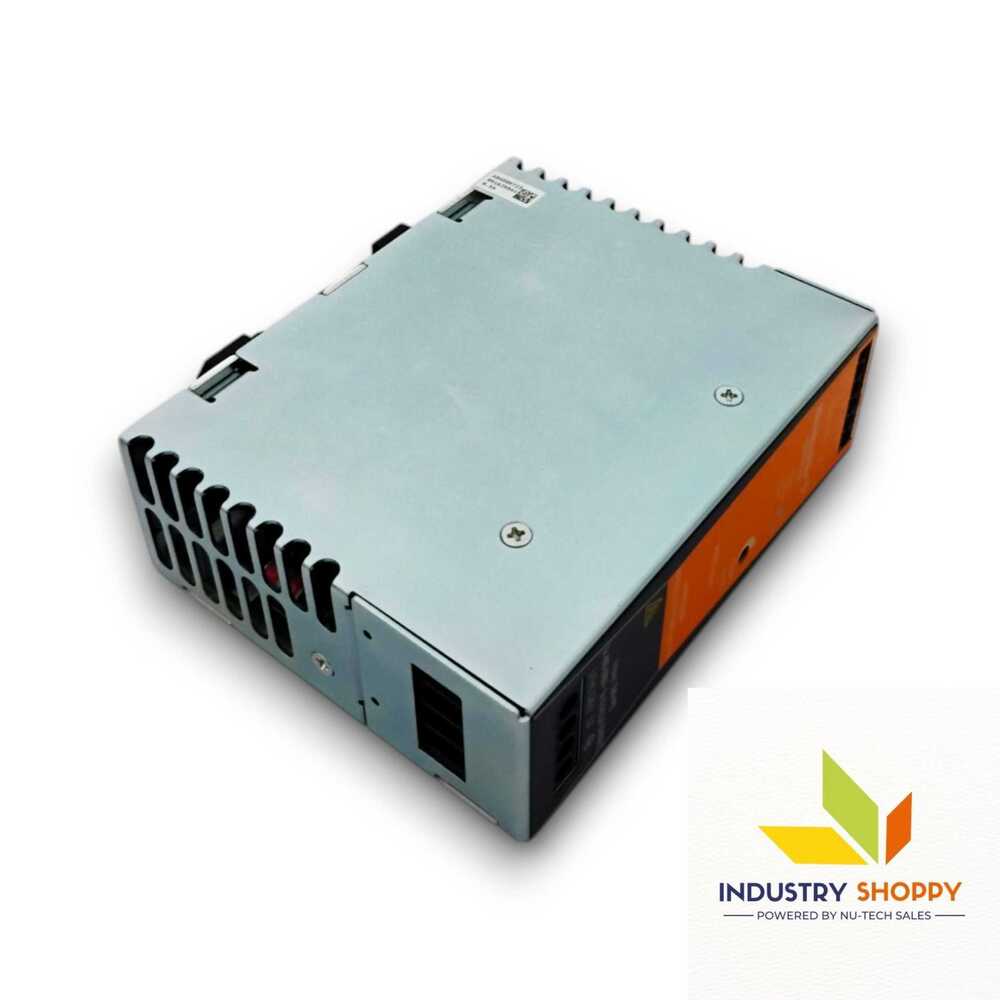

The Weidmuller PRO ECO3 120W 24V 5A is a robust switch-mode power supply unit designed for industrial applications. It features a compact design with dimensions of 100 mm (depth) x 125 mm (height) x 60 mm (width) and a net weight of 1,002 g. This unit operates efficiently within an input voltage range of 85“264 V AC and 80“370 V DC, with a frequency range of 47“63 Hz. Its high degree of efficiency (90%) and low power loss ensure reliable performance while minimizing energy consumption.

The power supply offers a rated output voltage of 24 V DC ±1%, adjustable between 22“28 V via a potentiometer. It supports a continuous output current of up to 10 A at 55C and 2.5 A at 70C. Key protections include overload, over-temperature, short-circuit, and reverse voltage safeguards.

With built-in surge protection, parallel connection support (up to 5 units), and a ramp-up time of ‰100 ms, the unit is highly versatile. LED indicators (green, yellow, red) provide clear status updates. Designed for operation in temperatures from -25C to 70C and storage from -40C to 85C, it is resilient in demanding environments.

The corrosion-resistant metal housing and IP20 protection ensure durability, making it ideal for industrial automation and control systems.
