Panasonic CX-411 Photoelectric Sensor
1 INR/Piece
Product Details:
- Product Type Photoelectric Sensor
- Input 12-24 VDC
- Output NPN
- Warranty 12 Months
- Click to View more
X
Price And Quantity
- 5 Piece
- 1 INR/Piece
Product Specifications
- Photoelectric Sensor
- NPN
- 12-24 VDC
- 12 Months
Trade Information
- Delhi
- Telegraphic Transfer (T/T), Western Union, Paypal, Cash in Advance (CID), Cheque, Cash Advance (CA)
- 200 Piece Per Week
- 2-3 Days
- Yes
- Sample costs shipping and taxes has to be paid by the buyer
- Asia, Australia, North America, Eastern Europe, Western Europe, Middle East, South America, Central America, Africa
- All India
Product Description

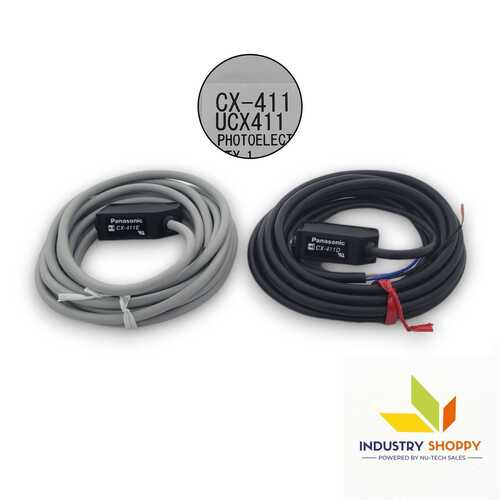

Panasonic CX-411 Photoelectric Sensor
Spec Detail
| Item | Specifications |
|---|---|
| Product Number | CX-411 |
| Part Number | CX-411 |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Sensing range | 10 m 32.808 ft |
| Sensing object | 12 mm 0.472 in or more opaque object (Note) If slit masks (optional) are fitted, an object of 0.5 mm 0.020 in (using round slit mask) can be detected. |
| Hysteresis | - |
| Repeatability(perpendicular to sensing axis) | 0.5 mm 0.020 in or less |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | Emitter: 15 m or less Receiver: 10 mA or less |
| Output | NPN open-collector transistor - Maximum sink current: 100 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current) |
| Output:Output operation | Switchable either Light-ON or Dark-ON |
| Output:Short-circuit protection | Incorporated |
| Response time | 1 ms or less |
| Operation indicator | Orange LED(lights up when the output is ON) (incorporated on the receiver for thru-beam type) |
| Stability indicator | Green LED(lights up under stable light received condition or stable dark condition) (incorporated on the receiver for thru-beam type) |
| Power indicator | Green LED(lights up when the power is ON) (incorporated on the emitter) |
| Sensitivity adjuster | Continuously variable adjuster(incorporated on the receiver for thru-beam type) |
| Automatic interference prevention function | Two units of sensors can be mounted close together with interference prevention filters. (Sensing range: 5 m 16.404 ft) |
| Protection | IP67 (IEC) |
| Ambient temperature | - 25 to +55 -13 to +131 (No dew condensation or icing allowed ), Storage: -30 to +70 -22 to +158 |
