Panasonic CX-441-P Photoelectric Sensor

1 INR/Piece

Get a Price/Quote

Product Details:

Product Type Photoelectric Sensor
Input 12-24 VDC
Output PNP
Warranty 12 Months
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Price And Quantity

Price 1 INR/Piece
Minimum Order Quantity 5 Piece

Product Specifications

Warranty 12 Months
Input 12-24 VDC
Product Type Photoelectric Sensor
Output PNP

Trade Information

FOB Port Delhi
Payment Terms Western Union, Paypal, Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 200 Piece Per Week
Delivery Time 2-3 Days
Sample Available Yes
Sample Policy Free samples available with shipping and taxes paid by the buyer
Main Export Market(s) Western Europe, Asia, Australia, Eastern Europe, Middle East, Central America, South America, North America, Africa
Main Domestic Market All India

Product Description

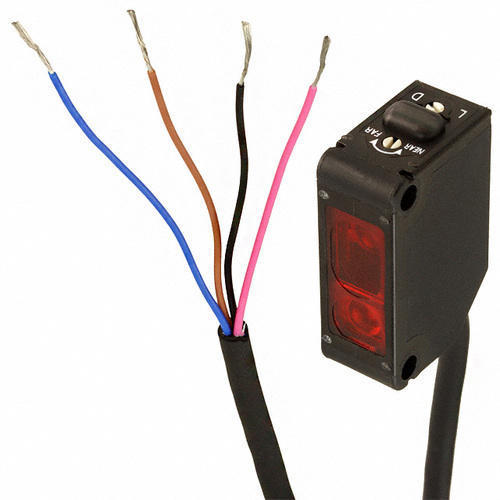

Panasonic CX-441-P Photoelectric Sensor.

Spec Detail

Item	Specifications
Product Number	CX-441-P
Part Number	CX-441-P
CE marking directive compliance	EMC Directive, RoHS Directive
Adjustable range	20 to 50 mm 0.787 to 1.969 in (Note) The adjustable range stands for the maximum sensing range which can be set with the distance adjuster. The sensor can detect an object 2 mm 0.079 in [CX-444(-P): 15 mm 0.591 in, CX-442(-P): 20 mm 0.787 in], or more, away.
Sensing range(with white non-glossy paper)	2 to 50 mm 0.079 to 1.969 in
Hysteresis	2 % or less of operation distance(with white non-glossy paper)
Repeatability	Along sensing axis: 1 mm 0.039 in or less, Perpendicular to sensing axis: 0.2 mm 0.008 in or less (with white non-glossy paper)
Supply voltage	12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current consumption	20 mA or less
Output	PNP open-collector transistor - Maximum source current: 100 mA - Applied voltage: 30 V DC or less (between output and +V) - Residual voltage: 2 V or less (at 100 mA source current), 1 V or less (at 16 mA source current)
Output:Output operation	Switchable either Detection-ON or Detection-OFF
Output:Short-circuit protection	Incorporated
Response time	1 ms or less
Operation indicator	Orange LED (lights up when the output is ON)
Stability indicator	Green LED(lights up under stable operating condition)
Distance adjuster	5-turn mechanical adjuster
Sensing mode	BGS / FGS functions switchable with wiring of sensing mode selection input
Automatic Interference prevention function	Incorporated (Note) Note that detection may be unstable depending on the mounting conditions or the sensing object. In the state that this product is mounted, be sure to check the operation with the actual sensing object.
Protection	IP67 (IEC)
Ambient temperature	- 25 to +55â„ƒ -13 to +131â„ƒ â„‰ (No dew condensation or icing allowed ), Storage: -30 to +70â„ƒ -22 to +158â„ƒ â„‰
Ambient humidity	35 to 85 % RH, Storage: 35 to 85 % RH
