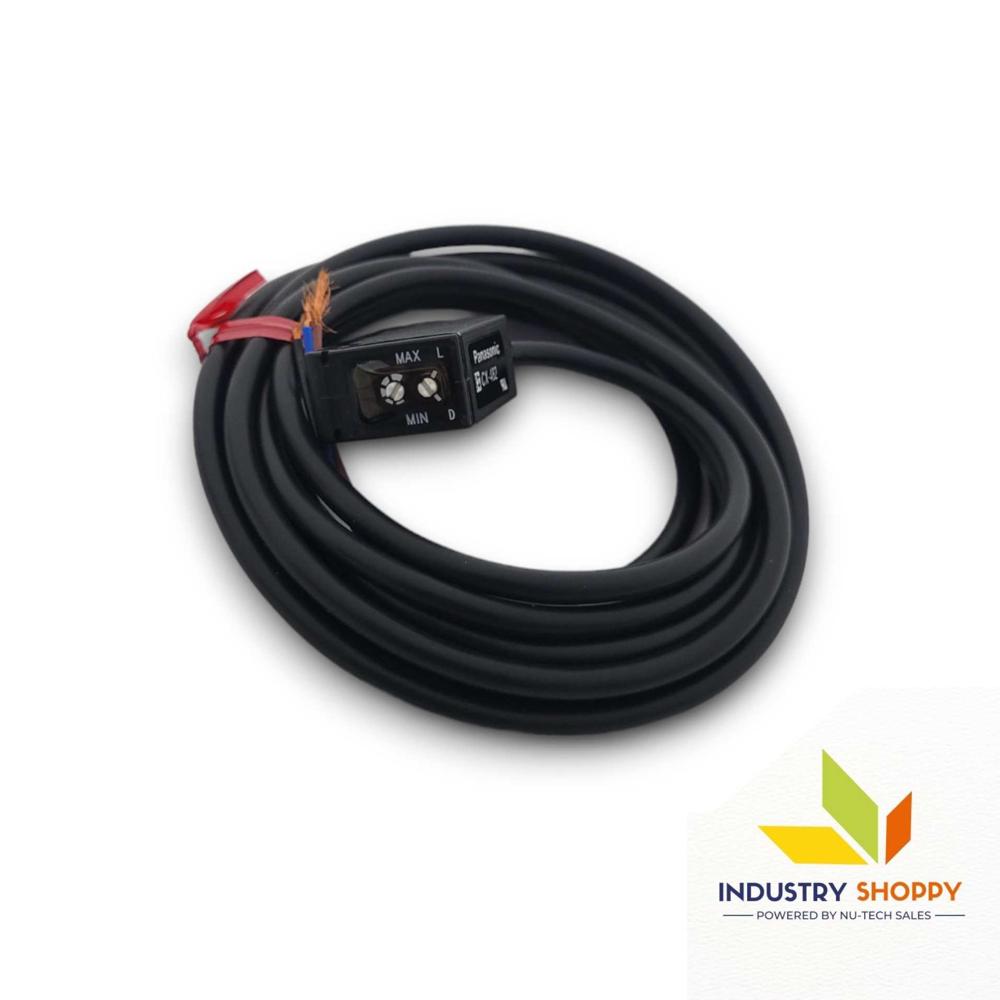

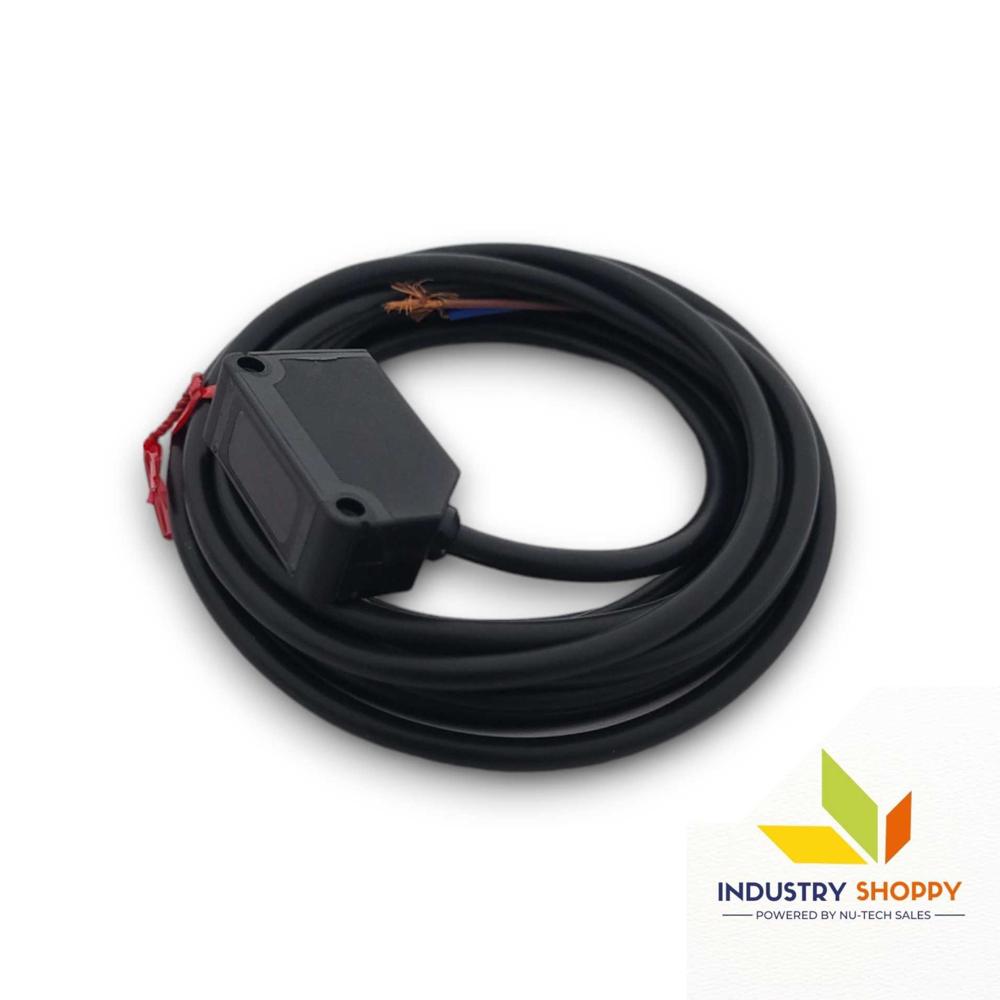

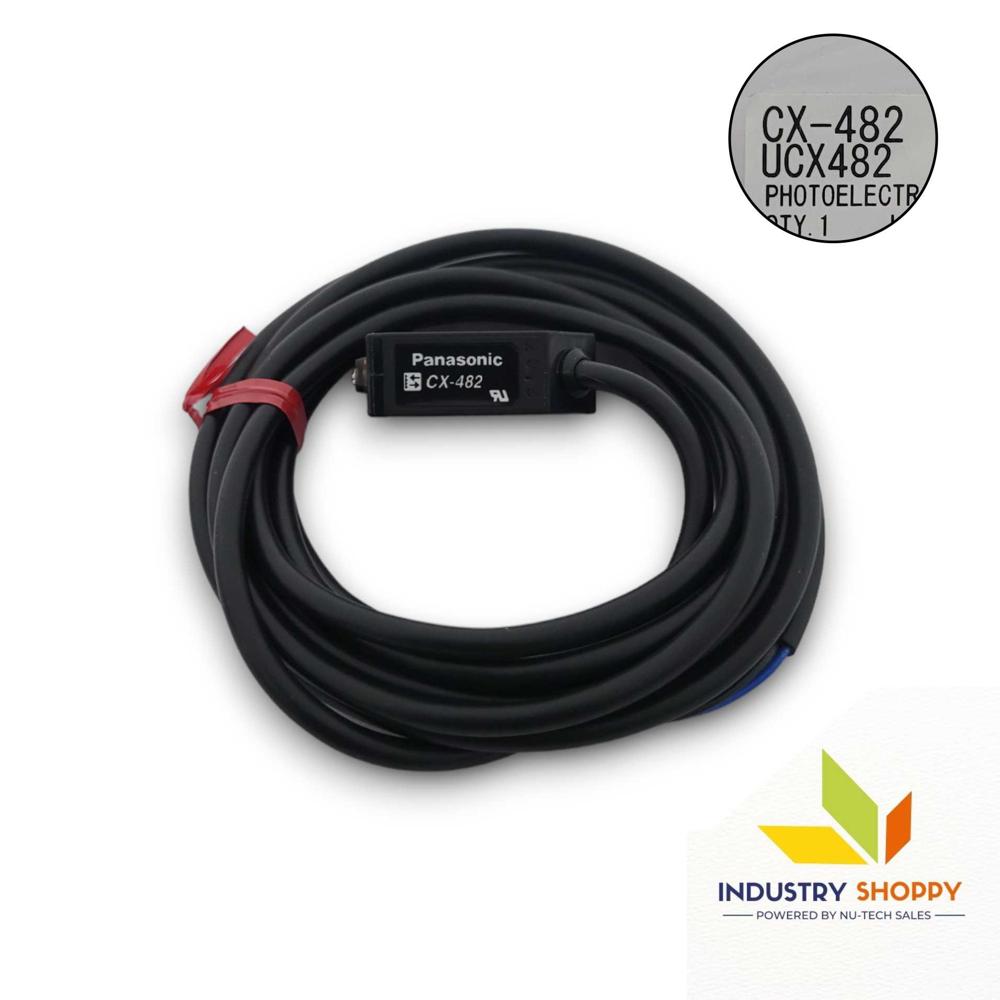

Panasonic CX-482 Photoelectric Sensor

Product Number

CX-482

Part Number

CX-482

CE marking directive compliance

EMC Directive, RoHS Directive

Sensing range

0.1 to 2 m 0.328 to 6.562 ft

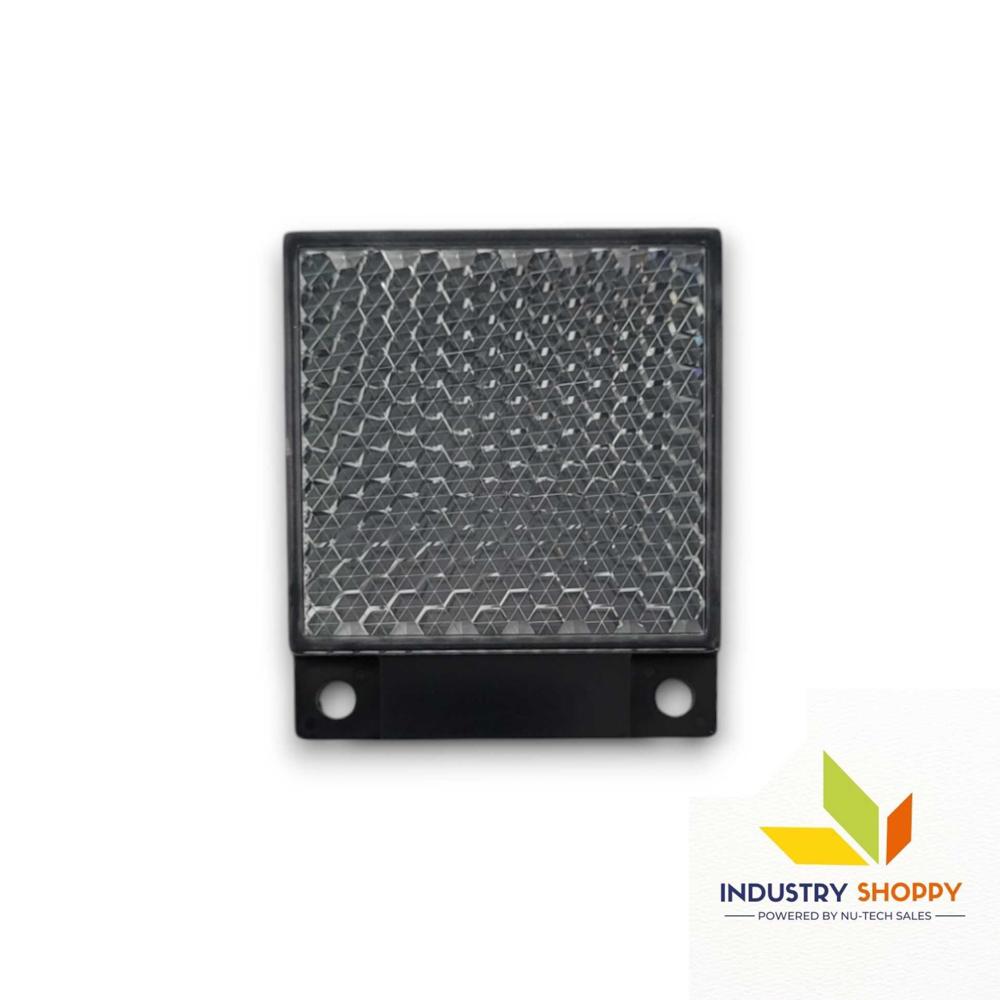

(Note) The sensing range and the sensing object of the retroreflective type sensor are specifi ed for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor.

Sensing object

50 mm 1.969 in or more transparent,translucent or opaque object
(Note) The sensing range and the sensing object of the retroreflective type sensor are specifi ed for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor.
(Note) Make sure to confirm detection with an actual sensor before use.

Hysteresis

-

Repeatability(perpendicular to sensing axis)

0.5 mm 0.020 in or less

Supply voltage

12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less

Current consumption

10 mA or less

Output

NPN open-collector transistor
- Maximum source current: 100 mA
- Applied voltage: 30 V DC or less (between output and +V)
- Residual voltage: 2 V or less (at 100 mA source current), 1 V or less (at 16 mA source current)

Output:Output operation

Switchable either Light-ON or Dark-ON

Output:Short-circuit protection

Incorporated

Response time

1 ms or less

Operation indicator

Orange LED(lights up when the output is ON)
(incorporated on the receiver for thru-beam type)

Stability indicator

Green LED(lights up under stable light received condition or stable dark condition)
(incorporated on the receiver for thru-beam type)

Power indicator

-

Sensitivity adjuster

Continuously variable adjuster(incorporated on the receiver for thru-beam type)

Automatic interference prevention function

Incorporated (Two units of sensors can be mounted close together.)

Protection

IP67 (IEC)

Ambient temperature

- 25 to +55 -13 to +131 (No dew condensation or icing allowed ), Storage: -30 to +70 -22 to +158

Ambient humidity

35 to 85 % RH, Storage: 35 to 85 % RH

Ambient illuminance

Incandescent light: 3,000 lx or less at the light-receiving face

Voltage withstandability

1,000 V AC for one min. between all supply terminals connected together and enclosure

Insulation resistance

20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure

Vibration resistance

10 to 500 Hz frequency, 1.5 mm 0.059 in amplitude (10 G max.) in X, Y and Z directions for two hours each

Shock resistance

500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each

Emitting element (modulated)

Infrared LED

Emitting element (modulated):Peak emission wavelength

870 nm 0.034 mil

Material

Enclosure: PBT (polybutylene terephthalate)
Lens: polycarbonate
Indicator cover: polycarbonate

Cable

0.2 mm23-core cabtyre cable, 2 m 6.562 ft long

Cable extension

Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.

Weight

Net weight: 50 g approx.
Gross weight: 80 g approx.
