Tianma TM104SDHG30 LCD Module

Product Description

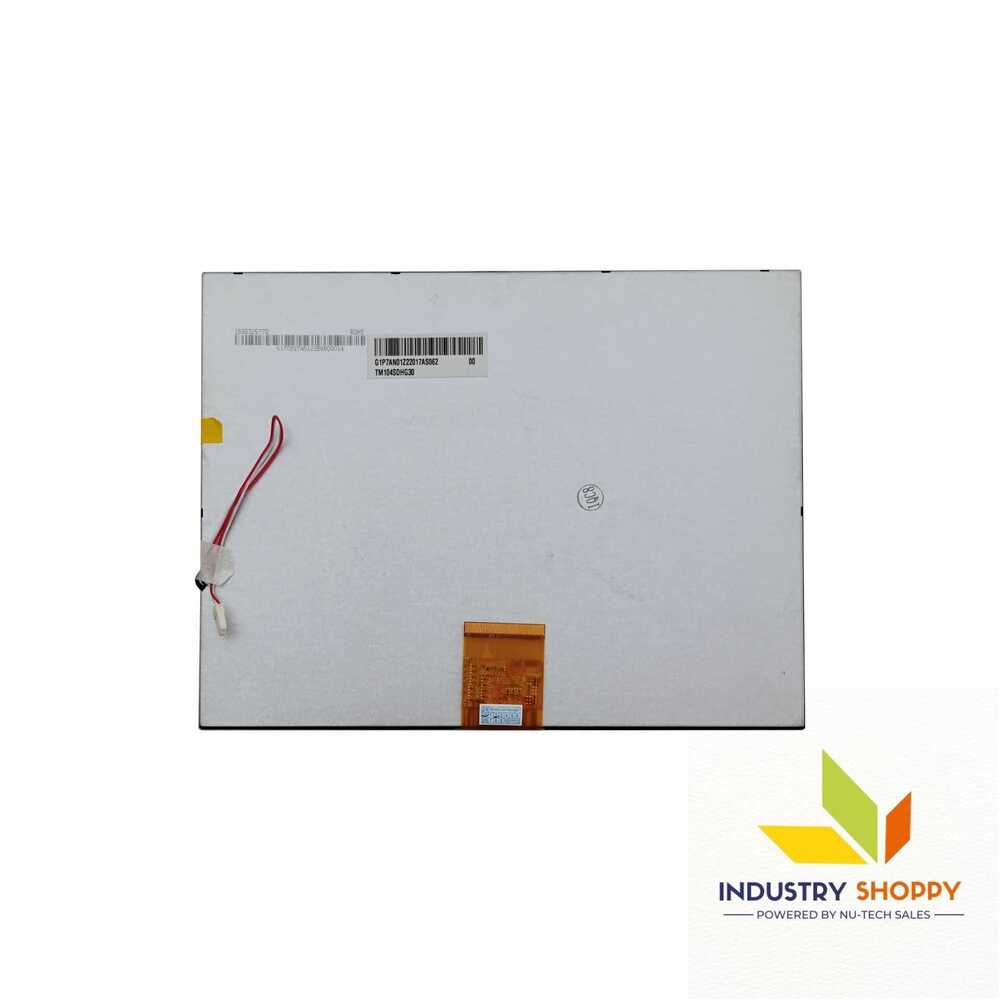

Tianma TM104SDHG30 LCD Module

The Tianma TM104SDHG30 LCD Module is a 10.4-inch TFT-LCD display is a high-quality a-Si TFT-LCD panel designed for a range of industrial and commercial applications. Featuring an 800 600 SVGA resolution with a 96 PPI pixel density, this display provides clear and sharp images. Its active area of 211.2 mm 158.4 mm ensures ample screen space for various interface designs.

With a brightness of 350 cd/m and a contrast ratio of 500:1, the display delivers a balanced viewing experience. The TN panel with normally white, transmissive operating mode offers a viewing angle of 70 (left/right), 60 (up), and 70 (down) (CR 10), making it suitable for controlled environments. The response time of 10ms (Tr) / 15ms (Td) ensures smooth image transitions, reducing ghosting effects.

The panel supports 262K/16.7M colors (50% NTSC coverage) for accurate color reproduction. It features TTL (1 ch, 6/8-bit) signal interface via a 60-pin FPC connection, operating at a 60Hz refresh rate. The power supply requirements are 3.3V, 11.0V, 25.0V, and -7.0V (typical).

Equipped with a 3S12P WLED backlight rated for 30,000 hours of operation, the display is energy-efficient but requires an external driver. The antiglare hard coating (3H) enhances visibility and durability. It weighs 360g and operates within a temperature range of -20C to 70C, with storage tolerance from -10C to 60C.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Dont scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.

---
