Item | Specifications |
---|---|

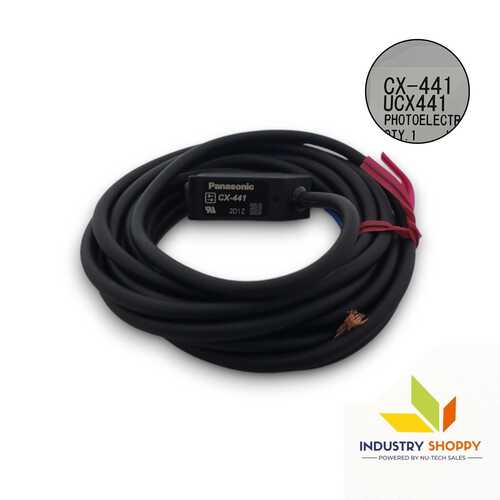

Product Number | CX-441 |
Part Number | CX-441 |
CE marking directive compliance | EMC Directive, RoHS Directive |
Adjustable range | 20 to 50 mm 0.079 to 1.969 in |
Hysteresis | 2 % or less of operation distance(with white non-glossy paper) |
Repeatability | Along sensing axis: 1 mm 0.039 in or less, Perpendicular to sensing axis: 0.2 mm 0.008 in or less (with white non-glossy paper) |
Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
Current consumption | 20 mA or less |
Output | NPN open-collector transistor - Maximum sink current: 100 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current) |
Output:Output operation | Switchable either Detection-ON or Detection-OFF |
Output:Short-circuit protection | Incorporated |
Response time | 1 ms or less |
Operation indicator | Orange LED (lights up when the output is ON) |
Stability indicator | Green LED(lights up under stable operating condition) |
Distance adjuster | 5-turn mechanical adjuster |
Sensing mode | BGS / FGS functions switchable with wiring of sensing mode selection input |
Automatic Interference prevention function | Incorporated (Note) Note that detection may be unstable depending on the mounting conditions or the sensing object. In the state that this product is mounted, be sure to check the operation with the actual sensing object. |
Protection | IP67 (IEC) |
Ambient temperature | - 25 to +55â -13 to +131â â (No dew condensation or icing allowed ), Storage: -30 to +70â -22 to +158â â |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
